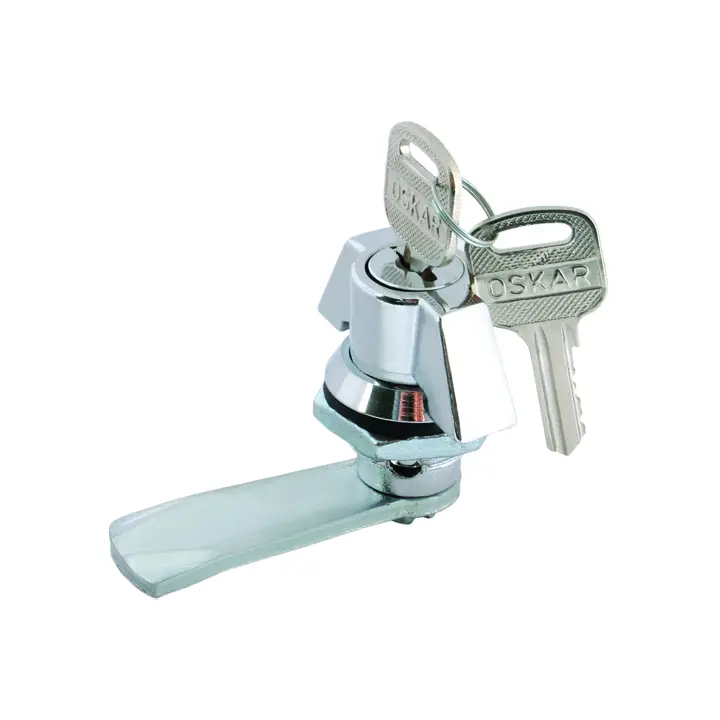

Cam lock, wing knob, 1333, keyed alike, H6, L652 mm, photograph
Photographclick to zoom

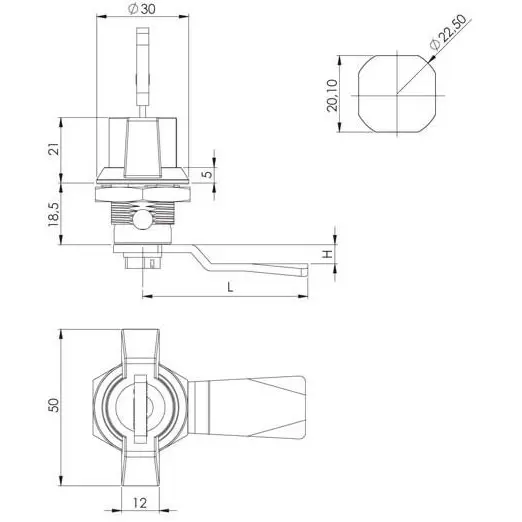

Cam lock, wing knob, 1333, keyed alike, H6, L652 mm, dimensioned drawing in millimetres
Dimensioned drawing, mmOpen full size
Enquire for availability

Cam lock, wing knob, 1333, keyed alike, H6, L652 mm

SKU 107586 Reference 232-2-03-07 Family Cam locks and quarter-turns
Prices for approved trade accountsSign in or apply for an account to see prices and buy online. You can still ask for a quotation.
Type
Cam locks
Size
L652 mm
Insert / key
Wing knob
Locking
Keyed alike
Availability
Enquire for availability
Sold
Each

Attributes above are read from the catalogue description “CAM LOCK WING KNOB 1333 KYD ALIKE H6 L652mm 232-2-03-07” and the drawing. Where they differ, the drawing is definitive. Dimensions in millimetres.

Application and selection

Quarter-turn cam locks are the standard closure for enclosure panels: a 90° turn swings a cam behind the frame. The 201 series is offered with the full range of tool inserts (double-bit, square, triangle, Allen), and there are wing-knob, T-handle and L-handle variants for tool-free access.

  • Match the insert to the site key standard: 3 mm and 5 mm double-bit, 6 mm and 8 mm square, 8 mm and 9 mm triangle, 6 mm Allen.
  • Zinc die-cast chrome, zinc black and polyamide bodies.
  • Cams, cam holders, keys and dust caps are in Accessories.

Used in: Electrical enclosures, Vehicle bodies and service compartments, Machinery access doors.

Documents
What is included

One cam lock, wing knob, 1333, keyed alike, h6, l652 mm as pictured, with key. Rods, cams, keys, gaskets and fixings are separate lines unless the description says otherwise. Ask if you need the bill of materials for a complete door.

TitleCam lock, wing knob, 1333, keyed alike, H6, L652 mm
SKU107586
Reference232-2-03-07
Series232
Unitsmm · ZAR excl. VAT

All configurations in the 232 series

Same family, same series code. Compare inserts, finishes and versions, then add several lines at once.

ProductConfigurationDrawingPrice excl. VATStockQty
Quarter-turn cam lock, wing knob, zinc, black, keyed alike
105033 · Ref 232-2-03-07
Zinc die-cast · Black · Wing knob · Keyed alike Sign in for price JHB stock
