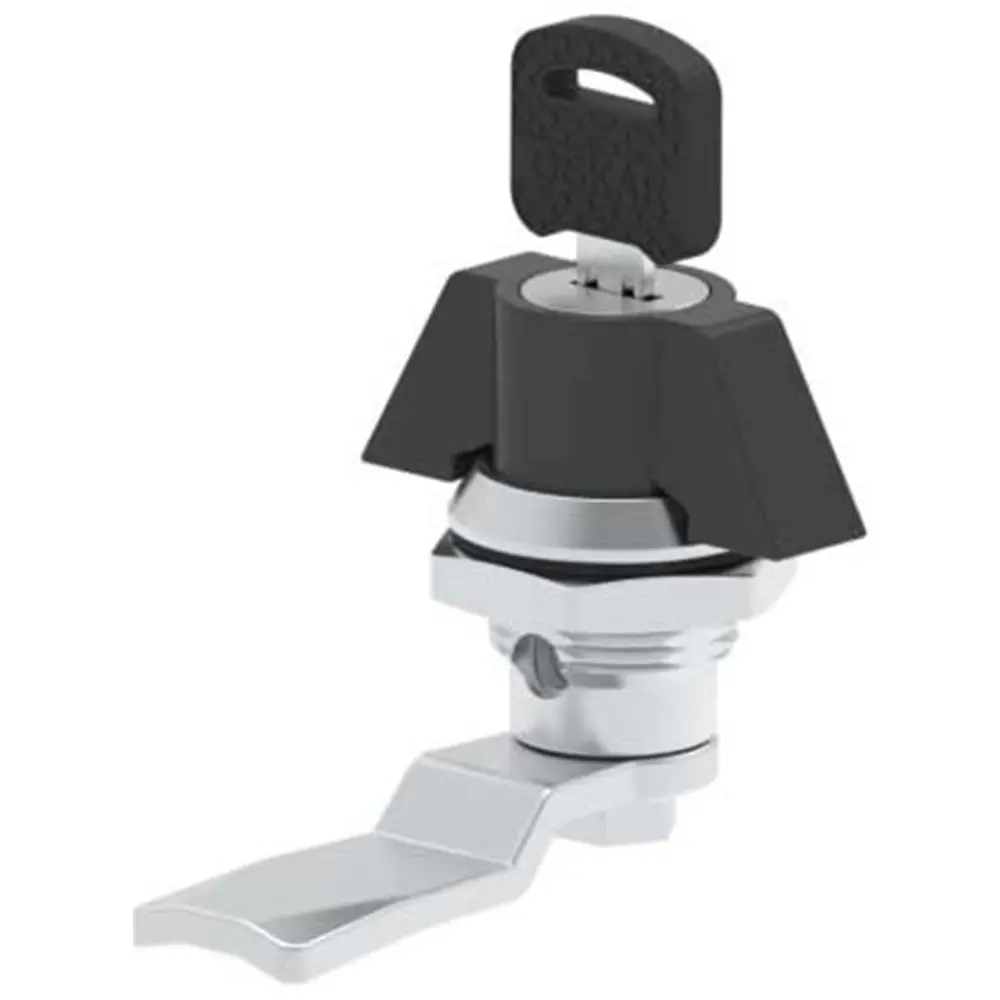

Quarter-turn cam lock, wing knob, zinc, black, keyed alike, photograph
Photographclick to zoom

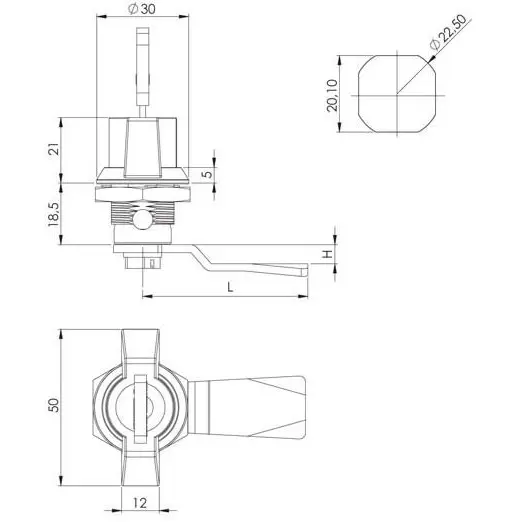

Quarter-turn cam lock, wing knob, zinc, black, keyed alike, dimensioned drawing in millimetres
Dimensioned drawing, mmOpen full size
In stock, Johannesburg

Quarter-turn cam lock, wing knob, zinc, black, keyed alike

SKU 105033 Reference 232-2-03-07 Family Cam locks and quarter-turns
Prices for approved trade accountsSign in or apply for an account to see prices and buy online. You can still ask for a quotation.
Type
Quarter-turn cam locks
Material
Zinc die-cast
Finish
Black
Insert / key
Wing knob
Locking
Keyed alike
Availability
In stock, Johannesburg
Sold
Each

Attributes above are read from the catalogue description “CAM LOCK QUARTER TURN WING KNOB ZINC BLACK KEYED ALIKE 232-2-03-07” and the drawing. Where they differ, the drawing is definitive. Dimensions in millimetres.

Application and selection

Quarter-turn cam locks are the standard closure for enclosure panels: a 90° turn swings a cam behind the frame. The 201 series is offered with the full range of tool inserts (double-bit, square, triangle, Allen), and there are wing-knob, T-handle and L-handle variants for tool-free access.

  • Match the insert to the site key standard: 3 mm and 5 mm double-bit, 6 mm and 8 mm square, 8 mm and 9 mm triangle, 6 mm Allen.
  • Zinc die-cast chrome, zinc black and polyamide bodies.
  • Cams, cam holders, keys and dust caps are in Accessories.

Used in: Electrical enclosures, Vehicle bodies and service compartments, Machinery access doors.

Documents
What is included

One quarter-turn cam lock, wing knob, zinc, black, keyed alike as pictured, with key. Rods, cams, keys, gaskets and fixings are separate lines unless the description says otherwise. Ask if you need the bill of materials for a complete door.

TitleQuarter-turn cam lock, wing knob, zinc, black, keyed alike
SKU105033
Reference232-2-03-07
Series232
Unitsmm · ZAR excl. VAT

All configurations in the 232 series

Same family, same series code. Compare inserts, finishes and versions, then add several lines at once.

ProductConfigurationDrawingPrice excl. VATStockQty
Cam lock, wing knob, 1333, keyed alike, H6, L652 mm
107586 · Ref 232-2-03-07
L652 mm · Wing knob · Keyed alike Sign in for price Enquire
Enter quantities, then add every line at once:
Sign in for price
