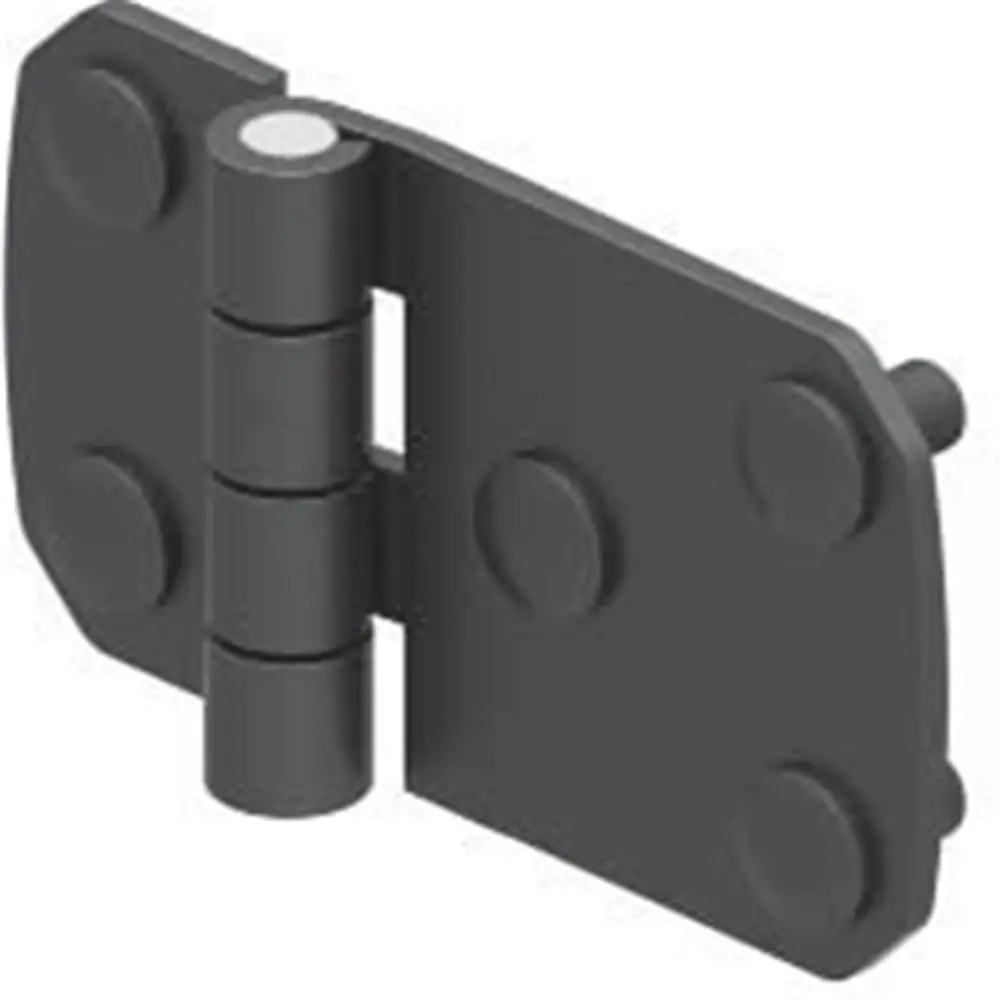

Hinge leaf, 60 × 106 mm, with studs, steel, black, photograph
Photographclick to zoom

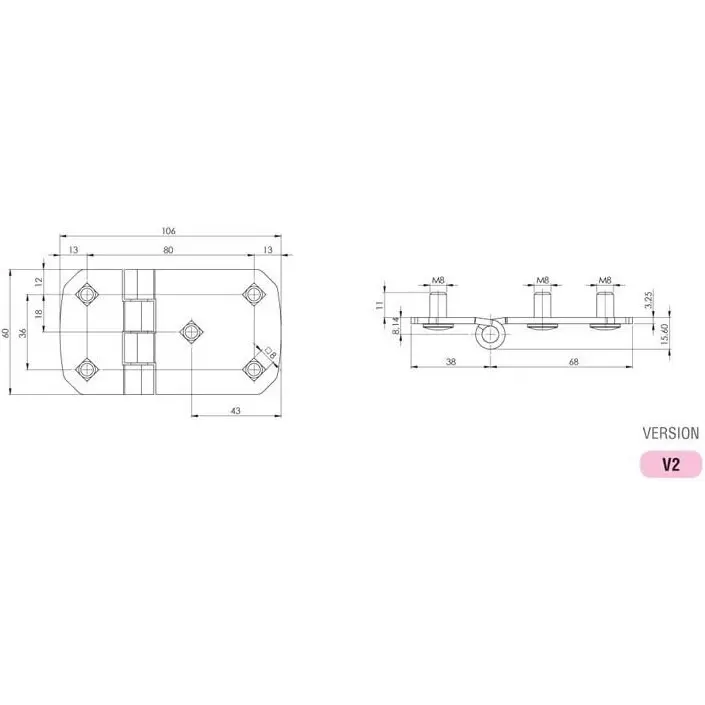

Hinge leaf, 60 × 106 mm, with studs, steel, black, dimensioned drawing in millimetres
Dimensioned drawing, mmOpen full size
In stock, Johannesburg

Hinge leaf, 60 × 106 mm, with studs, steel, black

SKU 105578 Reference 360-V2-2 Family Hinges
Other configurations in the 360 series. Choosing one changes the code, image, drawing, price and stock together.
Size
60 × 106 mm60 × 136 mm
Prices for approved trade accountsSign in or apply for an account to see prices and buy online. You can still ask for a quotation.
Type
Leaf hinges
Material
Steel
Finish
Black
Size
60 × 106 mm
Fixing
Threaded studs
Availability
In stock, Johannesburg
Sold
Each

Attributes above are read from the catalogue description “HINGE LEAF 60x106mm WITH STUDS STEEL BLACK 360-V2-2” and the drawing. Where they differ, the drawing is definitive. Dimensions in millimetres.

Application and selection

Leaf hinges for enclosure doors are supplied with either countersunk holes or threaded studs for blind fixing from inside the door. Sizes run from 40 × 40 mm to 60 × 136 mm in zinc die-cast, polyamide or steel.

  • Choose studs where the fixing must not be visible or accessible from outside.
  • Leaf size and hole pattern are dimensioned on each drawing.
  • Profile and sprung plastic hinges cover lids and lightweight panels.

Used in: Electrical enclosures, Generator canopies, Vehicle bodies and service compartments, Machinery access doors.

Documents
What is included

One hinge leaf, 60 × 106 mm, with studs, steel, black as pictured. Rods, cams, keys, gaskets and fixings are separate lines unless the description says otherwise. Ask if you need the bill of materials for a complete door.

TitleHinge leaf, 60 × 106 mm, with studs, steel, black
SKU105578
Reference360-V2-2
Series360
Unitsmm · ZAR excl. VAT

All configurations in the 360 series

Same family, same series code. Compare inserts, finishes and versions, then add several lines at once.

ProductConfigurationDrawingPrice excl. VATStockQty
Hinge leaf, 60 × 136 mm, with studs, steel, black
105579 · Ref 360-V3-2
Steel · Black · 60 × 136 mm · Threaded studs Sign in for price JHB stock
