Hinge leaf, 50 × 50 mm, with studs, polyamide, black
- Type
- Leaf hinges
- Material
- Polyamide
- Finish
- Black
- Size
- 50 × 50 mm
- Fixing
- Threaded studs
- Availability
- In stock, Johannesburg
- Sold
- Each
Attributes above are read from the catalogue description “HINGE LEAF 50x50mm WITH STUDS POLYAMIDE BLACK 318-V2-2-2” and the drawing. Where they differ, the drawing is definitive. Dimensions in millimetres.
Application and selection
Leaf hinges for enclosure doors are supplied with either countersunk holes or threaded studs for blind fixing from inside the door. Sizes run from 40 × 40 mm to 60 × 136 mm in zinc die-cast, polyamide or steel.
- Choose studs where the fixing must not be visible or accessible from outside.
- Leaf size and hole pattern are dimensioned on each drawing.
- Profile and sprung plastic hinges cover lids and lightweight panels.
Used in: Electrical enclosures, Generator canopies, Vehicle bodies and service compartments, Machinery access doors.
Documents

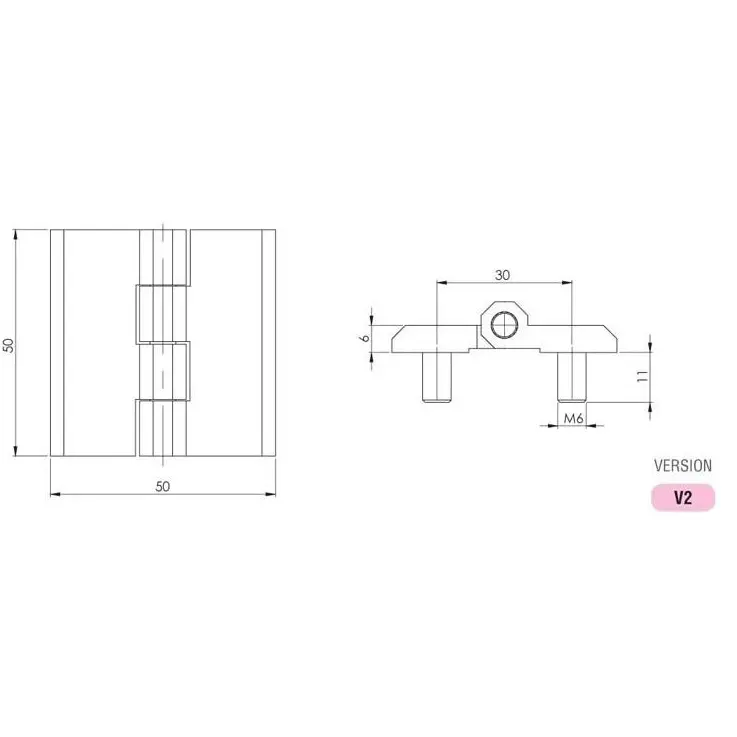

- Dimensioned drawing (image, mm) — 105568 / 318-V2-2-2
- PDF datasheet, installation guide and CAD file: not on file for this part. Request them and we obtain them from the manufacturer.
What is included

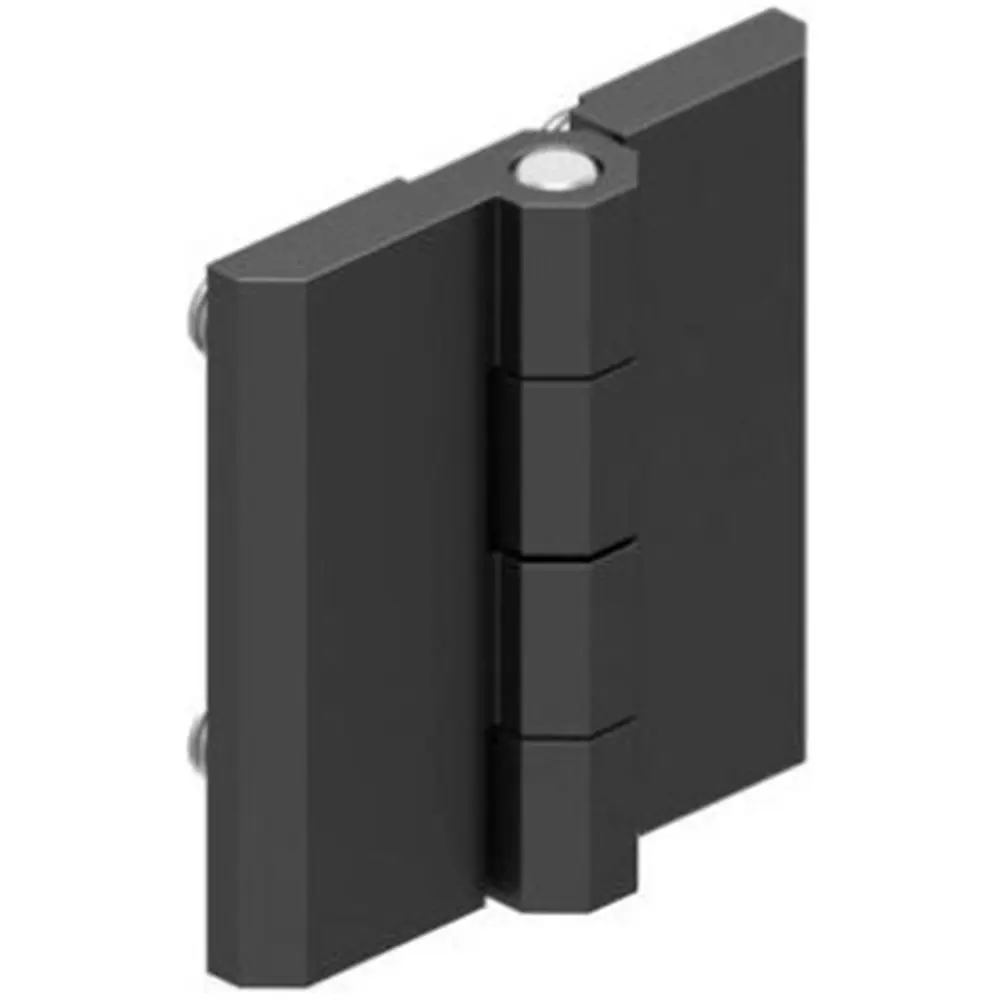

One hinge leaf, 50 × 50 mm, with studs, polyamide, black as pictured. Rods, cams, keys, gaskets and fixings are separate lines unless the description says otherwise. Ask if you need the bill of materials for a complete door.
