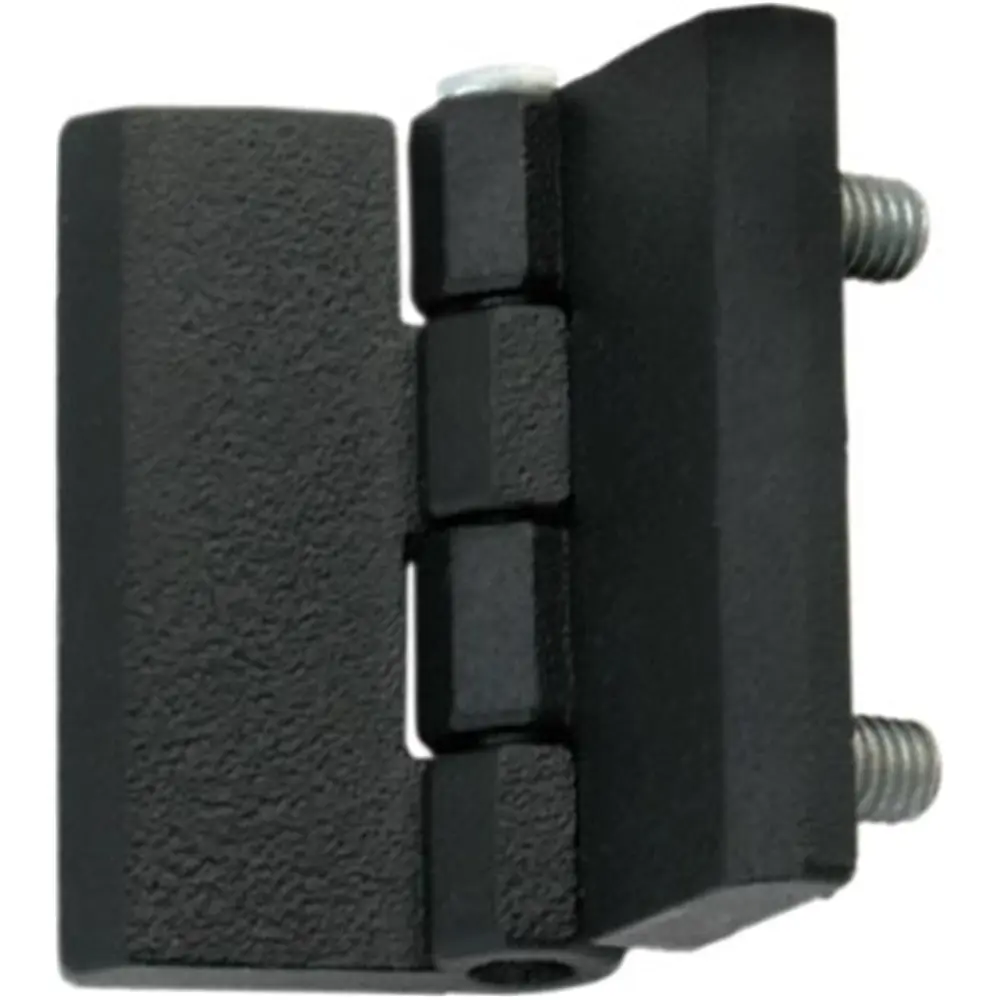

Hinge leaf, 40 × 40 mm, with studs, zinc, black, photograph
Photographclick to zoom

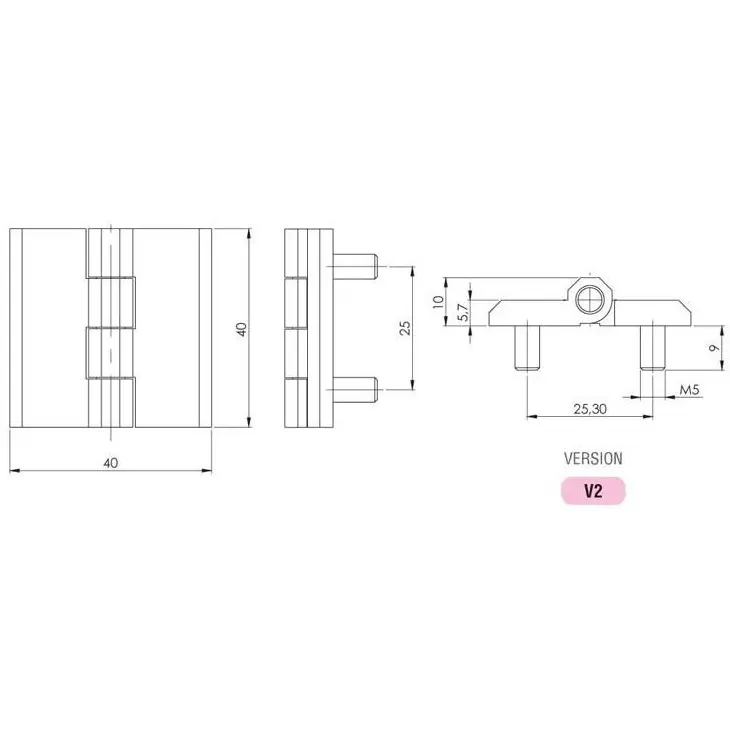

Hinge leaf, 40 × 40 mm, with studs, zinc, black, dimensioned drawing in millimetres
Dimensioned drawing, mmOpen full size
In stock, Johannesburg

Hinge leaf, 40 × 40 mm, with studs, zinc, black

SKU 105564 Reference 317-V2-1-2 Family Hinges
Other configurations in the 317 series. Choosing one changes the code, image, drawing, price and stock together.
Material
PolyamideZinc die-cast
Fixing
Countersunk holesThreaded studs
Prices for approved trade accountsSign in or apply for an account to see prices and buy online. You can still ask for a quotation.
Type
Leaf hinges
Material
Zinc die-cast
Finish
Black
Size
40 × 40 mm
Fixing
Threaded studs
Availability
In stock, Johannesburg
Sold
Each

Attributes above are read from the catalogue description “HINGE LEAF 40x40mm WITH STUDS ZINC BLACK 317-V2-1-2” and the drawing. Where they differ, the drawing is definitive. Dimensions in millimetres.

Application and selection

Leaf hinges for enclosure doors are supplied with either countersunk holes or threaded studs for blind fixing from inside the door. Sizes run from 40 × 40 mm to 60 × 136 mm in zinc die-cast, polyamide or steel.

  • Choose studs where the fixing must not be visible or accessible from outside.
  • Leaf size and hole pattern are dimensioned on each drawing.
  • Profile and sprung plastic hinges cover lids and lightweight panels.

Used in: Electrical enclosures, Generator canopies, Vehicle bodies and service compartments, Machinery access doors.

Documents
What is included

One hinge leaf, 40 × 40 mm, with studs, zinc, black as pictured. Rods, cams, keys, gaskets and fixings are separate lines unless the description says otherwise. Ask if you need the bill of materials for a complete door.

TitleHinge leaf, 40 × 40 mm, with studs, zinc, black
SKU105564
Reference317-V2-1-2
Series317
Unitsmm · ZAR excl. VAT

All configurations in the 317 series

Same family, same series code. Compare inserts, finishes and versions, then add several lines at once.

ProductConfigurationDrawingPrice excl. VATStockQty
Hinge leaf, 40 × 40 mm, with holes, zinc, black
105495 · Ref 317-V1-1-2
Zinc die-cast · Black · 40 × 40 mm · Countersunk holes Sign in for price JHB stock
Hinge leaf, 40 × 40 mm, with holes, polyamide, black
105565 · Ref 317-V1-2-2
Polyamide · Black · 40 × 40 mm · Countersunk holes Sign in for price JHB stock
Hinge leaf, 40 × 40 mm, with studs, polyamide, black
105566 · Ref 317-V2-2-2
Polyamide · Black · 40 × 40 mm · Threaded studs Sign in for price JHB stock
Enter quantities, then add every line at once:
Sign in for price
