Hinge, plastic, with spring, for, 1.5 mm, thickness, photograph
Photographclick to zoom

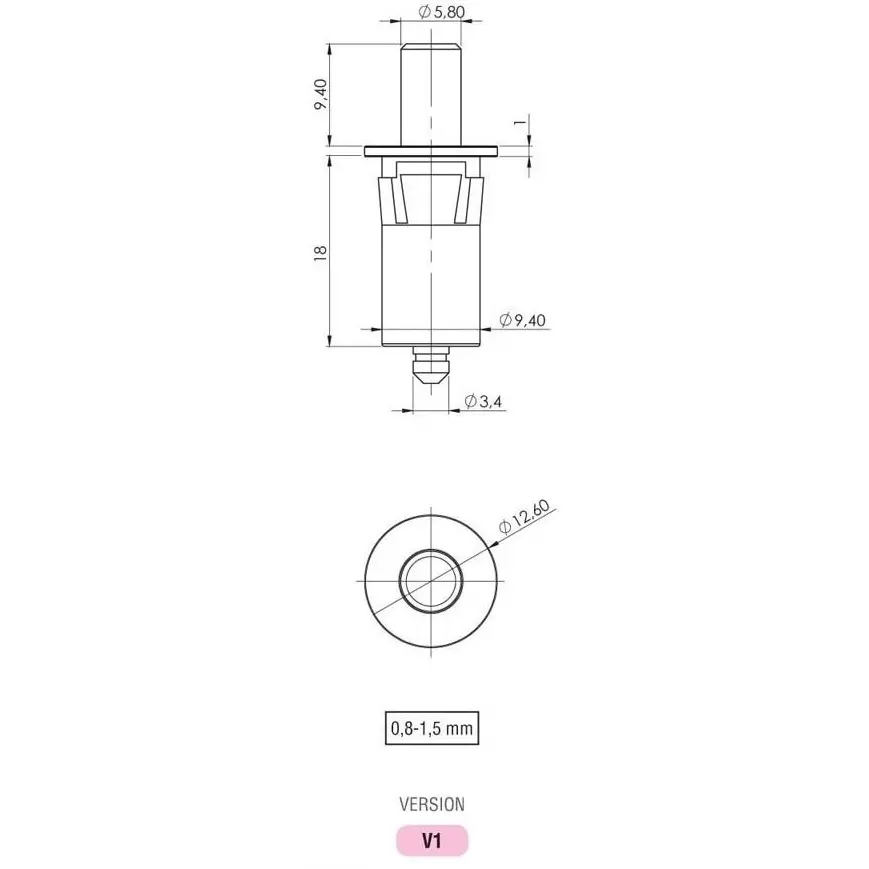

Hinge, plastic, with spring, for, 1.5 mm, thickness, dimensioned drawing in millimetres
Dimensioned drawing, mmOpen full size
In stock, Johannesburg

Hinge, plastic, with spring, for, 1.5 mm, thickness

SKU 105130 Reference 300-4-V1 Family Hinges
Prices for approved trade accountsSign in or apply for an account to see prices and buy online. You can still ask for a quotation.
Type
Plastic hinges
Material
Plastic
Size
1.5 mm
Feature
Sprung
Availability
In stock, Johannesburg
Sold
Each

Attributes above are read from the catalogue description “PLASTIC HINGE WITH SPRING FOR 1.5mm THICKNESS 300-4-V1” and the drawing. Where they differ, the drawing is definitive. Dimensions in millimetres.

Application and selection

Leaf hinges for enclosure doors are supplied with either countersunk holes or threaded studs for blind fixing from inside the door. Sizes run from 40 × 40 mm to 60 × 136 mm in zinc die-cast, polyamide or steel.

  • Choose studs where the fixing must not be visible or accessible from outside.
  • Leaf size and hole pattern are dimensioned on each drawing.
  • Profile and sprung plastic hinges cover lids and lightweight panels.

Used in: Electrical enclosures, Generator canopies, Vehicle bodies and service compartments, Machinery access doors.

Documents
What is included

One hinge, plastic, with spring, for, 1.5 mm, thickness as pictured. Rods, cams, keys, gaskets and fixings are separate lines unless the description says otherwise. Ask if you need the bill of materials for a complete door.

TitleHinge, plastic, with spring, for, 1.5 mm, thickness
SKU105130
Reference300-4-V1
Series300
Unitsmm · ZAR excl. VAT
