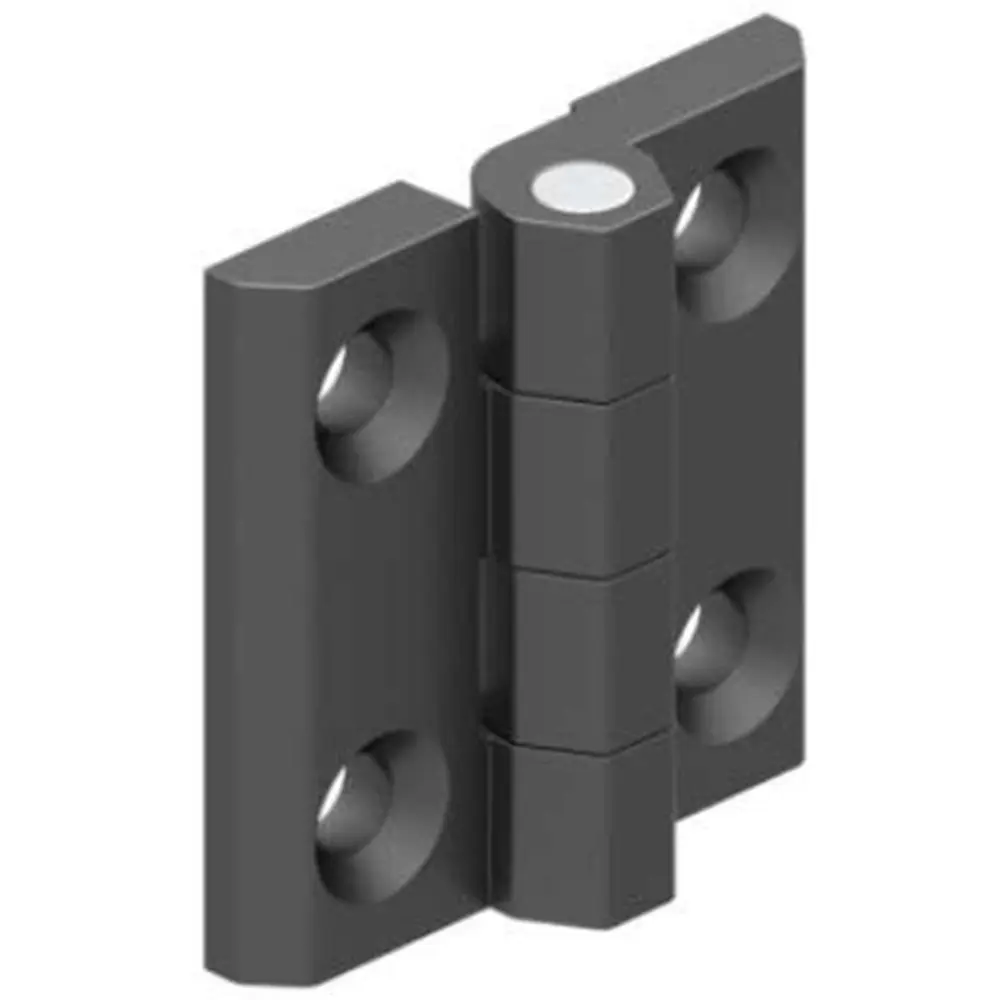

Hinge leaf, 60 × 60 mm, with holes, zinc, black, photograph
Photographclick to zoom

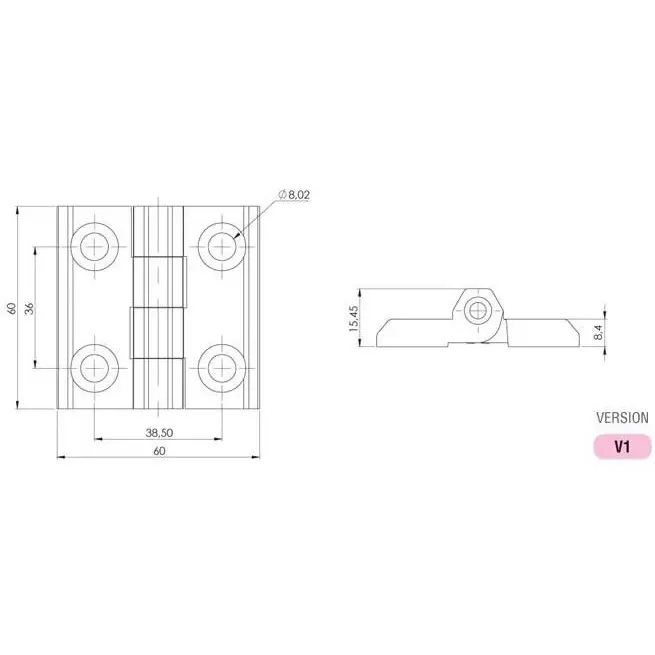

Hinge leaf, 60 × 60 mm, with holes, zinc, black, dimensioned drawing in millimetres
Dimensioned drawing, mmOpen full size
In stock, Johannesburg

Hinge leaf, 60 × 60 mm, with holes, zinc, black

SKU 105049 Reference 329-V1-1-2 Family Hinges
Other configurations in the 329 series. Choosing one changes the code, image, drawing, price and stock together.
Fixing
Countersunk holesThreaded studs
Prices for approved trade accountsSign in or apply for an account to see prices and buy online. You can still ask for a quotation.
Type
Leaf hinges
Material
Zinc die-cast
Finish
Black
Size
60 × 60 mm
Fixing
Countersunk holes
Availability
In stock, Johannesburg
Sold
Each

Attributes above are read from the catalogue description “HINGE LEAF 60x60mm WITH HOLES ZINC BLACK 329-V1-1-2” and the drawing. Where they differ, the drawing is definitive. Dimensions in millimetres.

Application and selection

Leaf hinges for enclosure doors are supplied with either countersunk holes or threaded studs for blind fixing from inside the door. Sizes run from 40 × 40 mm to 60 × 136 mm in zinc die-cast, polyamide or steel.

  • Choose studs where the fixing must not be visible or accessible from outside.
  • Leaf size and hole pattern are dimensioned on each drawing.
  • Profile and sprung plastic hinges cover lids and lightweight panels.

Used in: Electrical enclosures, Generator canopies, Vehicle bodies and service compartments, Machinery access doors.

Documents
What is included

One hinge leaf, 60 × 60 mm, with holes, zinc, black as pictured. Rods, cams, keys, gaskets and fixings are separate lines unless the description says otherwise. Ask if you need the bill of materials for a complete door.

TitleHinge leaf, 60 × 60 mm, with holes, zinc, black
SKU105049
Reference329-V1-1-2
Series329
Unitsmm · ZAR excl. VAT

All configurations in the 329 series

Same family, same series code. Compare inserts, finishes and versions, then add several lines at once.

ProductConfigurationDrawingPrice excl. VATStockQty
Hinge leaf, 60 × 60 mm, with studs, zinc, black
105569 · Ref 329-V2-1-2
Zinc die-cast · Black · 60 × 60 mm · Threaded studs Sign in for price JHB stock
