In stock, Johannesburg

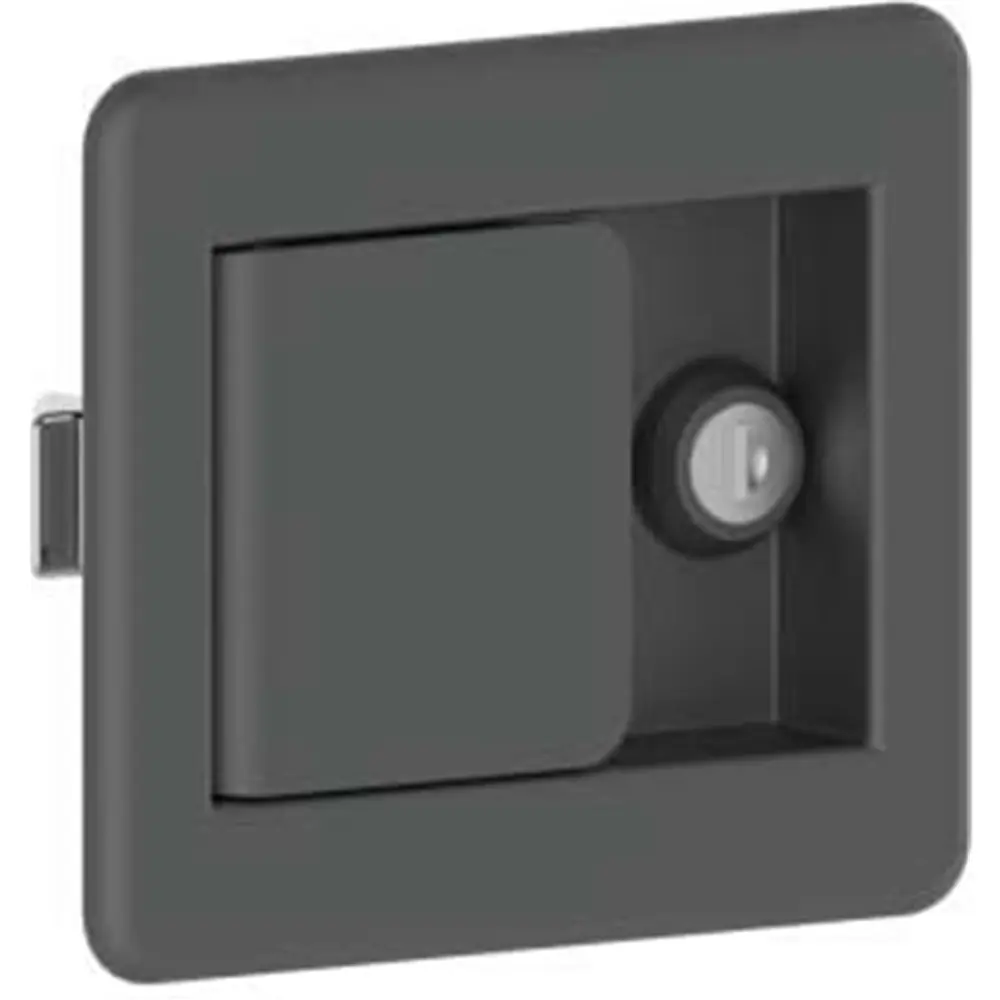

Push-to-close latch, polyamide, keyed alike
R259.00excl. VAT · each
- Type
- Push-to-close latches
- Material
- Polyamide
- Locking
- Keyed alike
- Availability
- In stock, Johannesburg
- Sold
- Each
Attributes above are read from the catalogue description “LOCK PUSH TO CLOSE LATCH POLYAMIDE KEYED ALIKE 260-01” and the drawing. Where they differ, the drawing is definitive. Dimensions in millimetres.
Application and selection
Push-to-close latches catch when the door is pushed home and release with a key or button. They suit doors that are opened many times a day, such as service compartments, vehicle lockers and machine guards.
- Steel, stainless steel and polyamide bodies are available.
- Keyed alike and padlockable versions are listed as separate codes.
Used in: Generator canopies, Vehicle bodies and service compartments.
Documents

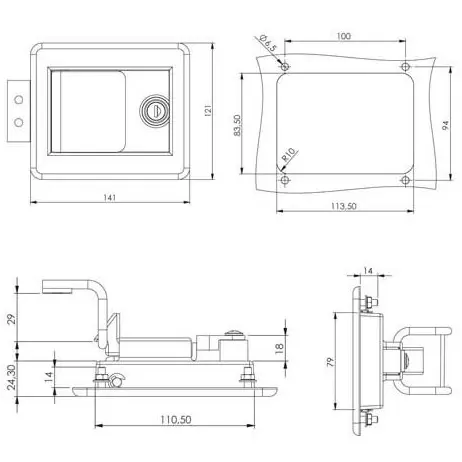

- Dimensioned drawing (image, mm) — 105041 / 260-01
- PDF datasheet, installation guide and CAD file: not on file for this part. Request them and we obtain them from the manufacturer.
What is included
One push-to-close latch, polyamide, keyed alike as pictured, with key. Rods, cams, keys, gaskets and fixings are separate lines unless the description says otherwise. Ask if you need the bill of materials for a complete door.
