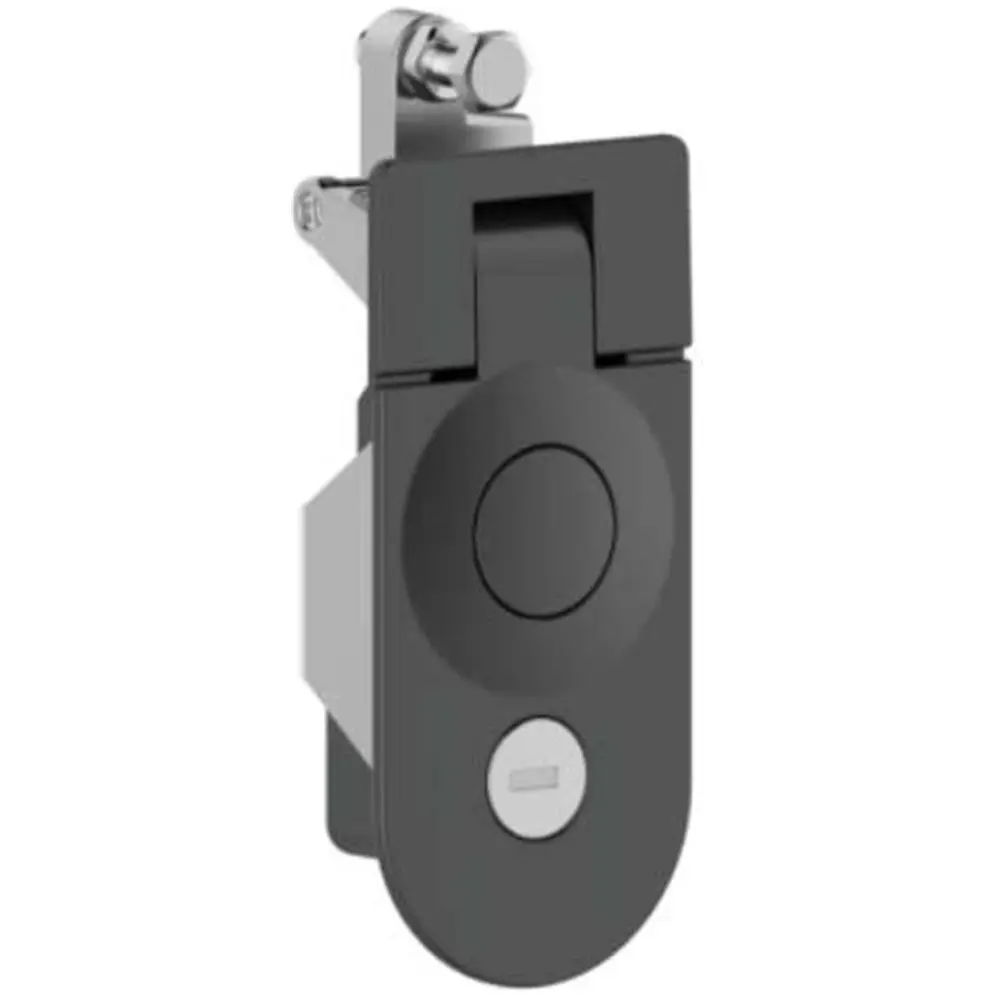

Compression latch round locking, short, keyed alike, zinc, black, photograph
Photographclick to zoom

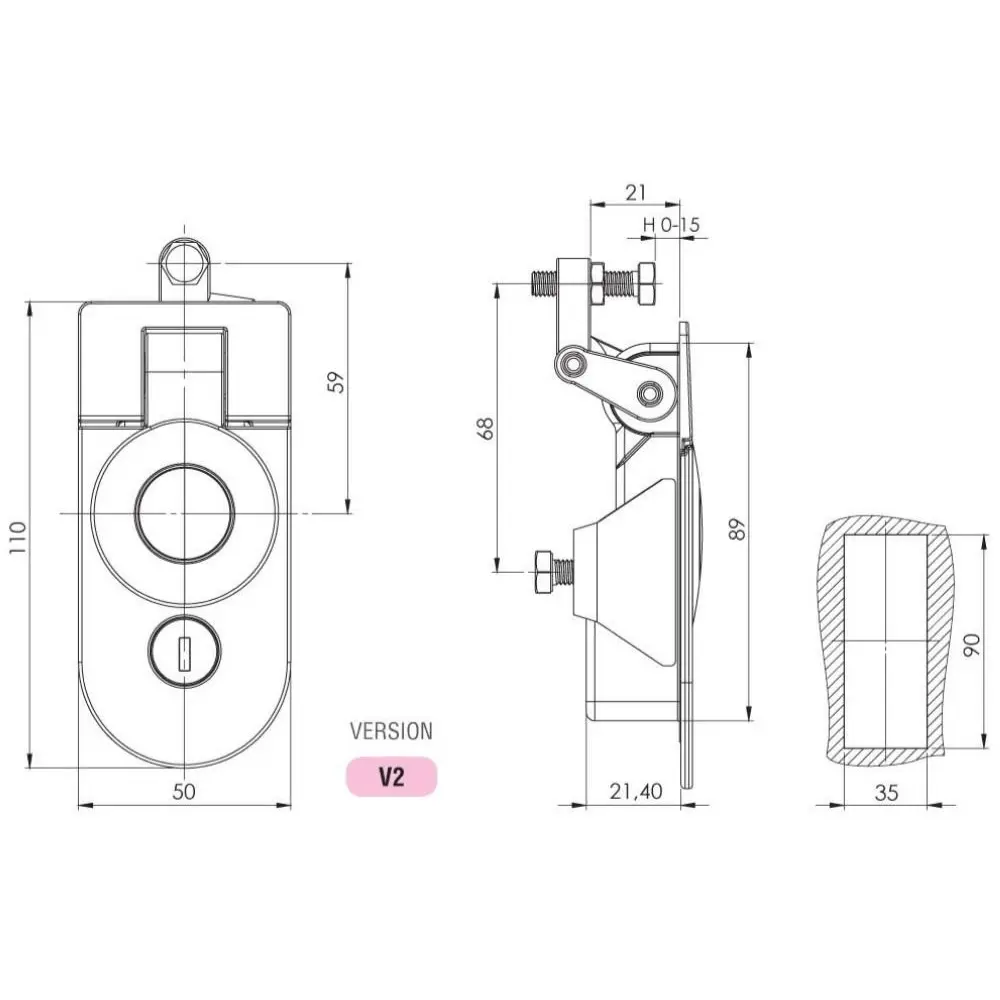

Compression latch round locking, short, keyed alike, zinc, black, dimensioned drawing in millimetres
Dimensioned drawing, mmOpen full size
In stock, Johannesburg

Compression latch round locking, short, keyed alike, zinc, black

SKU 105010 Reference 013-V2-01 Family Compression latches
Other configurations in the 013 series. Choosing one changes the code, image, drawing, price and stock together.
Locking
Grip range
Latch
LongShort
Prices for approved trade accountsSign in or apply for an account to see prices and buy online. You can still ask for a quotation.
Type
Compression latches
Material
Zinc die-cast
Finish
Black
Locking
Keyed alike
Latch
Short
Availability
In stock, Johannesburg
Sold
Each

Attributes above are read from the catalogue description “COMPRESSION LATCH ROUND LOCKING SHORT KEYED ALIKE ZINC BLACK 013-V2-01” and the drawing. Where they differ, the drawing is definitive. Dimensions in millimetres.

Application and selection

A compression latch draws the door inward during the last part of its travel, compressing the seal evenly. That is what keeps dust and water out of an enclosure over years of vibration. The 012 and 013 series are the lever type; the 721 series are adjustable toggle (over-centre) latches for lids and covers.

  • Long and short latch versions suit different door-to-frame offsets — check the drawing.
  • Locking versions take a keyed-alike cylinder; non-locking versions have a plain lever.
  • The 013 series is offered in two grip ranges (0–15 mm and 30–45 mm).

Used in: Electrical enclosures, Generator canopies, Vehicle bodies and service compartments, Machinery access doors.

Documents
What is included

One compression latch round locking, short, keyed alike, zinc, black as pictured, with key. Rods, cams, keys, gaskets and fixings are separate lines unless the description says otherwise. Ask if you need the bill of materials for a complete door.

TitleCompression latch round locking, short, keyed alike, zinc, black
SKU105010
Reference013-V2-01
Series013
Unitsmm · ZAR excl. VAT

All configurations in the 013 series

Same family, same series code. Compare inserts, finishes and versions, then add several lines at once.

ProductConfigurationDrawingPrice excl. VATStockQty
Compression latch round locking, long, keyed alike, zinc, black
105009 · Ref 013-V1-01
Zinc die-cast · Black · Keyed alike · Long Sign in for price JHB stock
Compression lock, 30–45 mm, non-locking, no cylinder, zinc, black
105126 · Ref 013-V3
Zinc die-cast · Black · 30–45 mm · Non-locking, No cylinder Sign in for price JHB stock
Compression lock, 0–15 mm, non-locking, no cylinder, zinc, black
105127 · Ref 013-V4
Zinc die-cast · Black · 0–15 mm · Non-locking, No cylinder Sign in for price JHB stock
