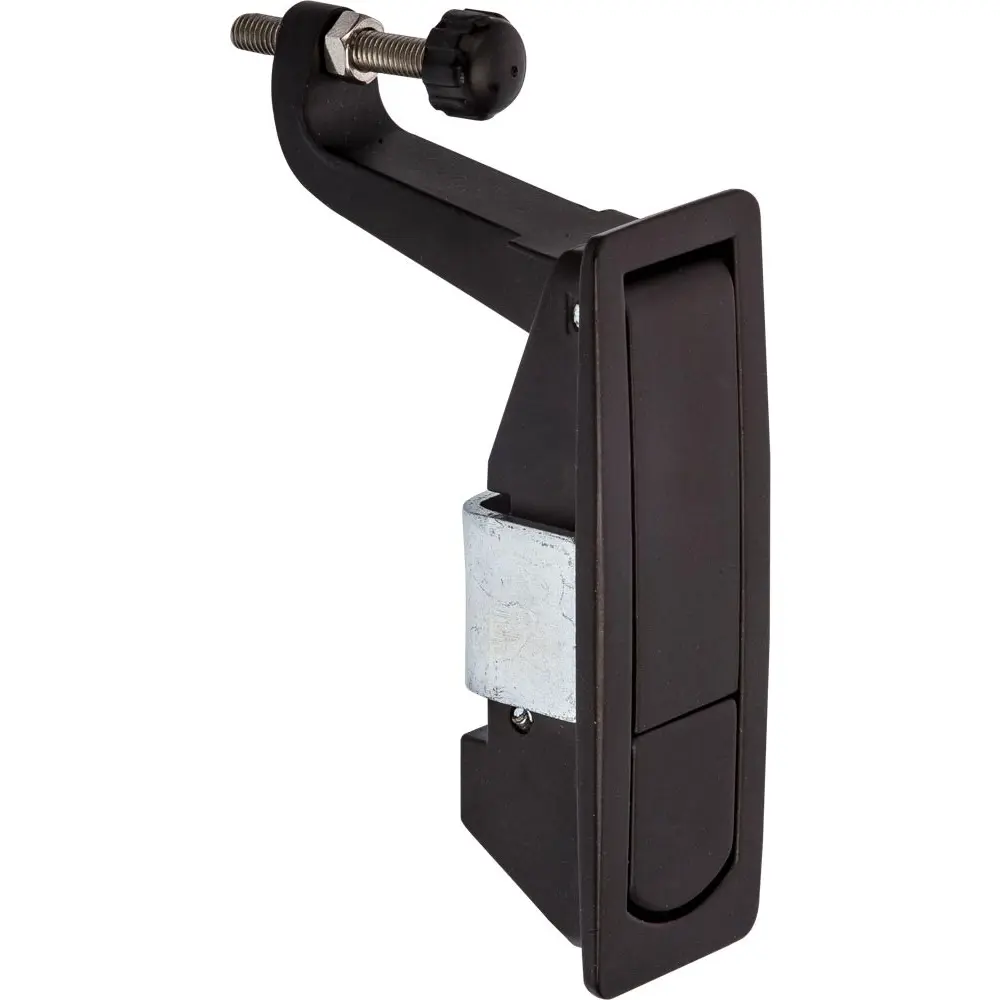

Compression latch, non-locking, long, zinc, black
- Type
- Compression latches
- Material
- Zinc die-cast
- Finish
- Black
- Locking
- Non-locking
- Latch
- Long
- Availability
- In stock, Johannesburg
- Sold
- Each
Attributes above are read from the catalogue description “COMPRESSION LATCH NON LOCKING LONG ZINC BLACK 012-V3” and the drawing. Where they differ, the drawing is definitive. Dimensions in millimetres.
Application and selection
A compression latch draws the door inward during the last part of its travel, compressing the seal evenly. That is what keeps dust and water out of an enclosure over years of vibration. The 012 and 013 series are the lever type; the 721 series are adjustable toggle (over-centre) latches for lids and covers.
- Long and short latch versions suit different door-to-frame offsets — check the drawing.
- Locking versions take a keyed-alike cylinder; non-locking versions have a plain lever.
- The 013 series is offered in two grip ranges (0–15 mm and 30–45 mm).
Used in: Electrical enclosures, Generator canopies, Vehicle bodies and service compartments, Machinery access doors.
Documents

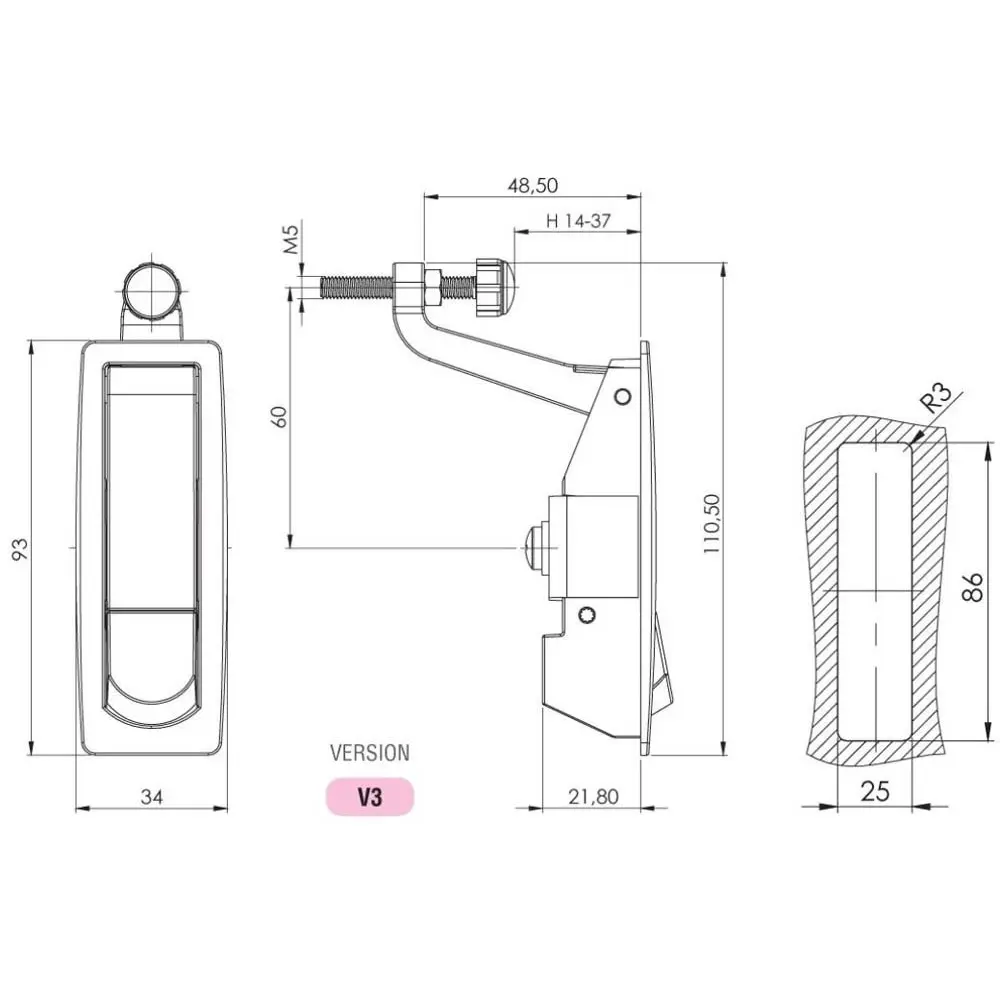

- Dimensioned drawing (image, mm) — 105007 / 012-V3
- PDF datasheet, installation guide and CAD file: not on file for this part. Request them and we obtain them from the manufacturer.
What is included
One compression latch, non-locking, long, zinc, black as pictured. Rods, cams, keys, gaskets and fixings are separate lines unless the description says otherwise. Ask if you need the bill of materials for a complete door.
