Swing handle lock, black painted, body, full metal, L54 mm
- Type
- Swing handles
- Material
- Full metal
- Finish
- Black painted
- Size
- L54 mm
- Availability
- Enquire for availability
- Sold
- Each

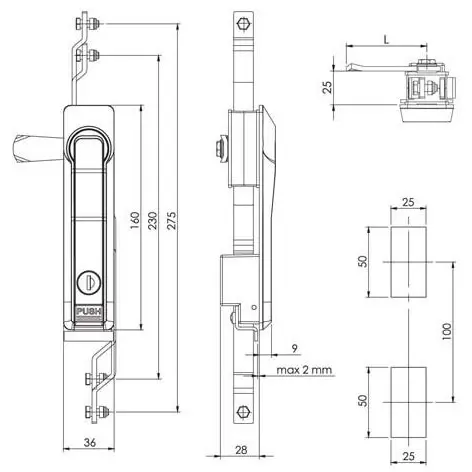

Attributes above are read from the catalogue description “SWING HANDLE LOCK BLACK PAINTED BODY FULL METAL L54mm 007-12-11-M1-03-” and the drawing. Where they differ, the drawing is definitive. Dimensions in millimetres.
Application and selection
Swing handles turn a single key or padlock into a two- or three-point closure. The handle drives flat rods to roller catches at the top and bottom of the door, pulling the whole leaf against the frame. Used on distribution boards, control cabinets and generator canopy doors where one central lock is not enough.
- Door thickness and handle length shown on each drawing.
- Rods (575 mm, 1020 mm, flat rod sets) and roller catches are ordered separately from Accessories.
- Choose keyed alike for a common key across a site, or a padlock device where site rules require a padlock.
Used in: Electrical enclosures, Generator canopies.
Documents
- PDF datasheet, installation guide and CAD file: not on file for this part. Request them and we obtain them from the manufacturer.
What is included
One swing handle lock, black painted, body, full metal, l54 mm as pictured. Rods, cams, keys, gaskets and fixings are separate lines unless the description says otherwise. Ask if you need the bill of materials for a complete door.
