Cam lock, with padlock device
- Type
- Cam locks
- Locking
- Padlock device
- Availability
- In stock, Johannesburg
- Sold
- Each
Attributes above are read from the catalogue description “CAM LOCK WITH PADLOCK DEVICE 103-078” and the drawing. Where they differ, the drawing is definitive. Dimensions in millimetres.
Application and selection
Quarter-turn cam locks are the standard closure for enclosure panels: a 90° turn swings a cam behind the frame. The 201 series is offered with the full range of tool inserts (double-bit, square, triangle, Allen), and there are wing-knob, T-handle and L-handle variants for tool-free access.
- Match the insert to the site key standard: 3 mm and 5 mm double-bit, 6 mm and 8 mm square, 8 mm and 9 mm triangle, 6 mm Allen.
- Zinc die-cast chrome, zinc black and polyamide bodies.
- Cams, cam holders, keys and dust caps are in Accessories.
Used in: Electrical enclosures, Vehicle bodies and service compartments, Machinery access doors.
Documents

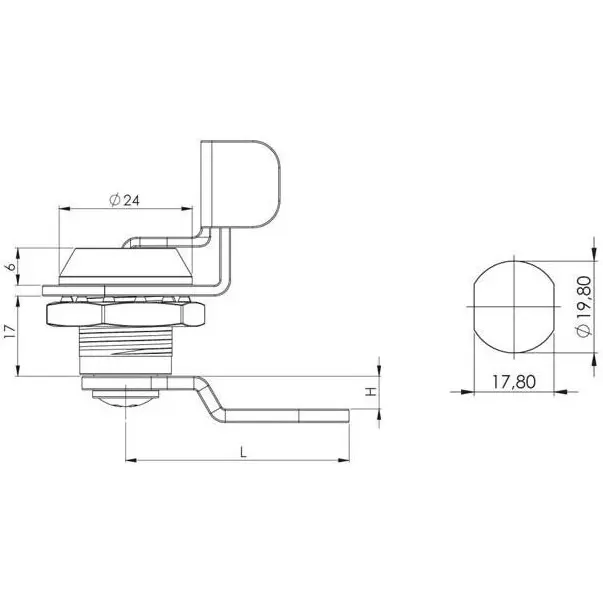

- Dimensioned drawing (image, mm) — 106040 / 103-078
- PDF datasheet, installation guide and CAD file: not on file for this part. Request them and we obtain them from the manufacturer.
What is included

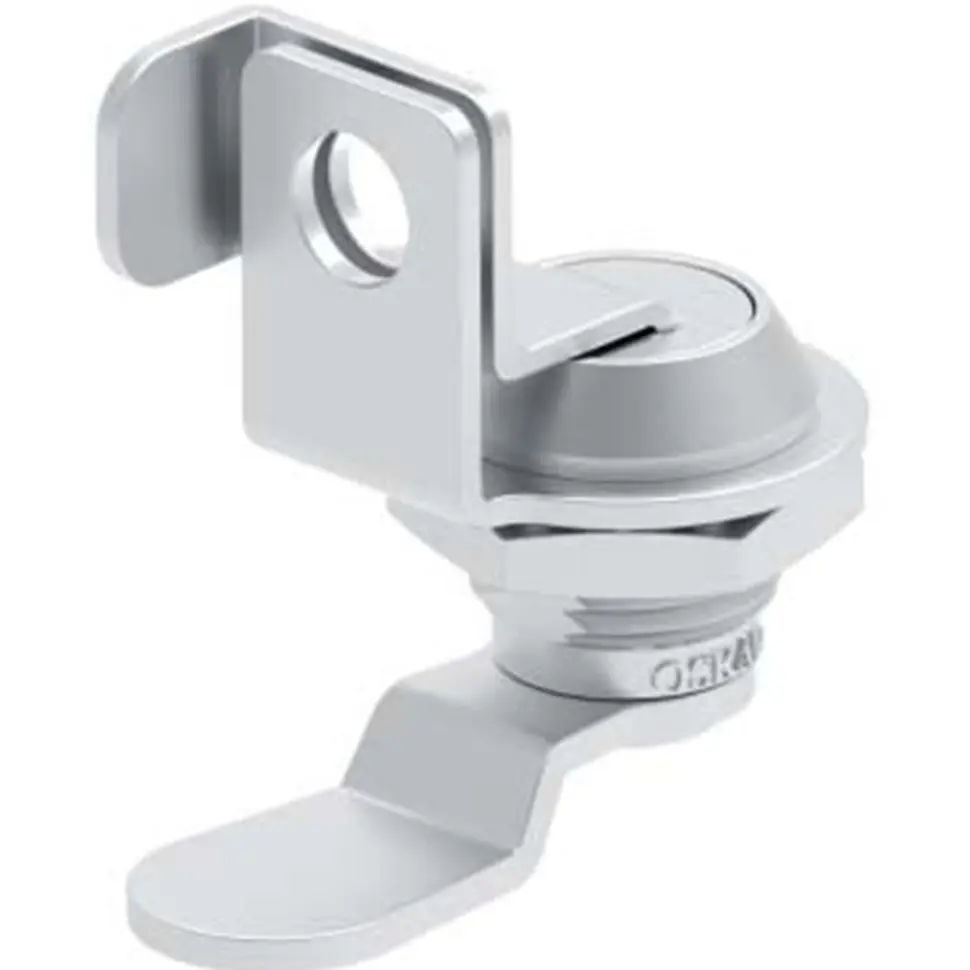

One cam lock, with padlock device as pictured. Rods, cams, keys, gaskets and fixings are separate lines unless the description says otherwise. Ask if you need the bill of materials for a complete door.
