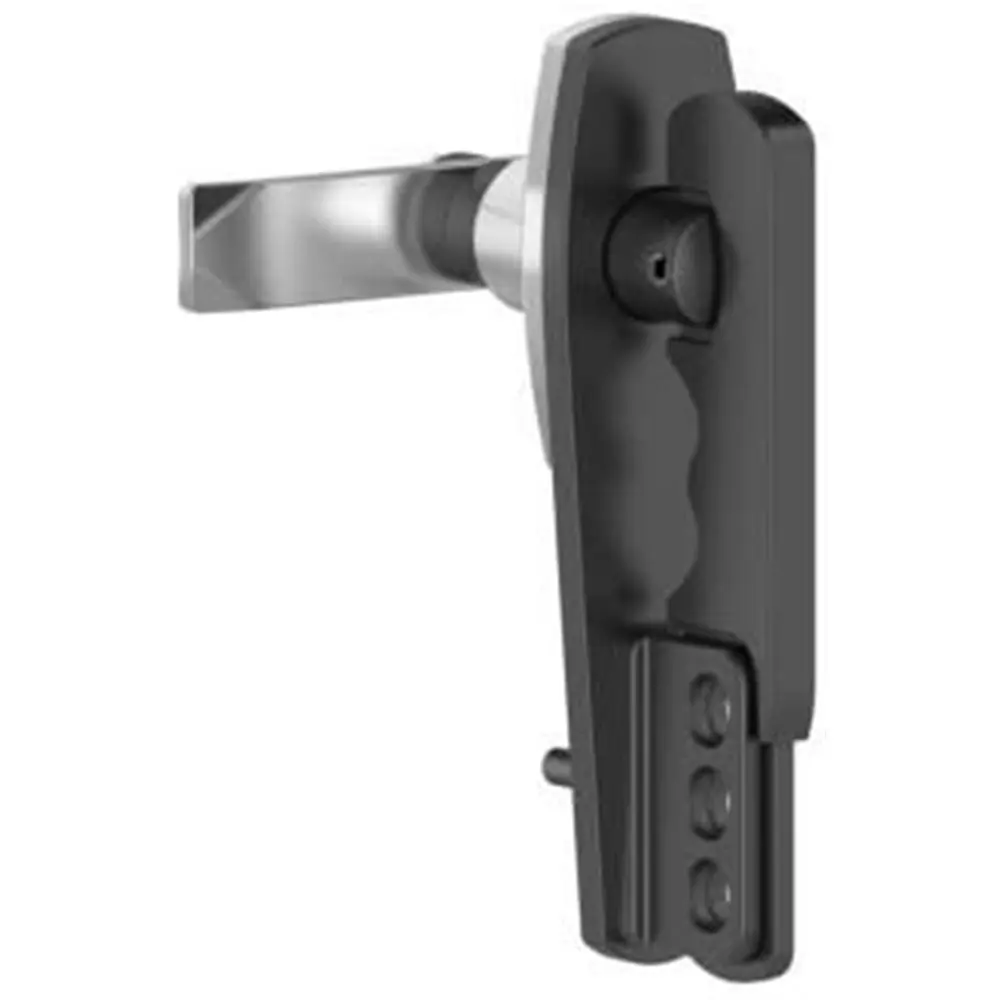

Swing handle, padlockable, long
R255.00excl. VAT · each
- Type
- Swing handles
- Locking
- Padlockable
- Size class
- Long
- Availability
- In stock, Johannesburg
- Sold
- Each
Attributes above are read from the catalogue description “SWING HANDLE PADLOCKABLE LONG 249L” and the drawing. Where they differ, the drawing is definitive. Dimensions in millimetres.
Application and selection
Swing handles turn a single key or padlock into a two- or three-point closure. The handle drives flat rods to roller catches at the top and bottom of the door, pulling the whole leaf against the frame. Used on distribution boards, control cabinets and generator canopy doors where one central lock is not enough.
- Door thickness and handle length shown on each drawing.
- Rods (575 mm, 1020 mm, flat rod sets) and roller catches are ordered separately from Accessories.
- Choose keyed alike for a common key across a site, or a padlock device where site rules require a padlock.
Used in: Electrical enclosures, Generator canopies.
Documents
- PDF datasheet, installation guide and CAD file: not on file for this part. Request them and we obtain them from the manufacturer.
What is included
One swing handle, padlockable, long as pictured. Rods, cams, keys, gaskets and fixings are separate lines unless the description says otherwise. Ask if you need the bill of materials for a complete door.
