In stock, Johannesburg
Gasket seal pinchweld, rubber
R72.00excl. VAT · per metre · quantity is metres
- Type
- Pinchweld gaskets
- Material
- Rubber
- Availability
- In stock, Johannesburg
- Sold
- Per metre
Attributes above are read from the catalogue description “RUBBER GASKET SEAL PINCHWELD 402-3” and the drawing. Where they differ, the drawing is definitive. Dimensions in millimetres.
Application and selection
Door gaskets are what a compression latch compresses. The 402 pinchweld series grips a folded sheet-metal edge; sealing tapes and self-adhesive foam profiles suit flat flanges and lids.
- Sold per metre; state the length you need.
- The gasket profile must match the door-to-frame gap when closed — see the drawing for section dimensions.
Used in: Electrical enclosures, Generator canopies.
Documents

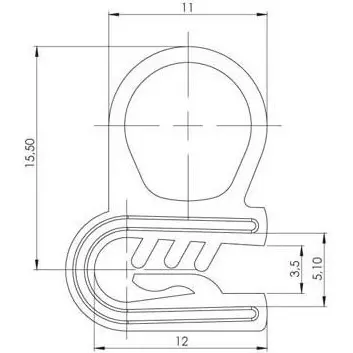

- Dimensioned drawing (image, mm) — 105575 / 402-3
- PDF datasheet, installation guide and CAD file: not on file for this part. Request them and we obtain them from the manufacturer.
What is included

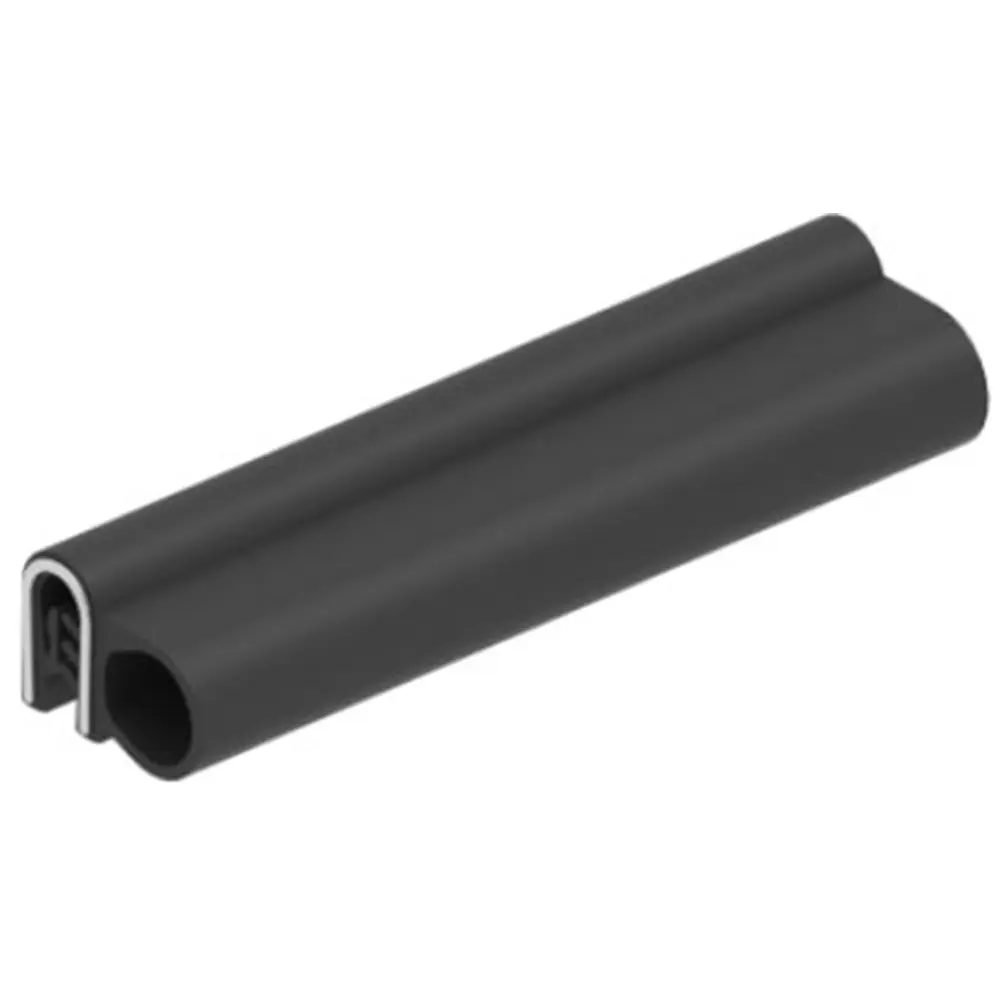

One gasket seal pinchweld, rubber as pictured. Rods, cams, keys, gaskets and fixings are separate lines unless the description says otherwise. Ask if you need the bill of materials for a complete door.
