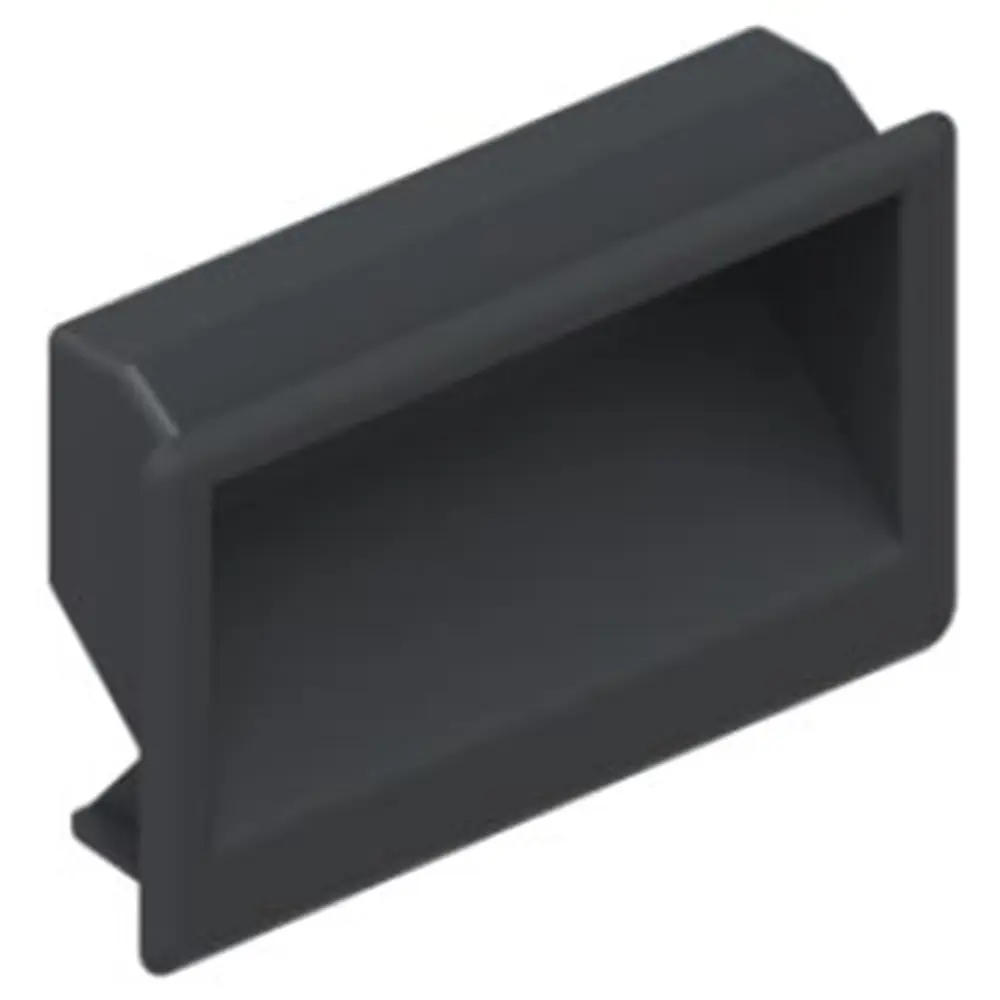

Handle recess, snap-in, polyamide, black, photograph
Photographclick to zoom

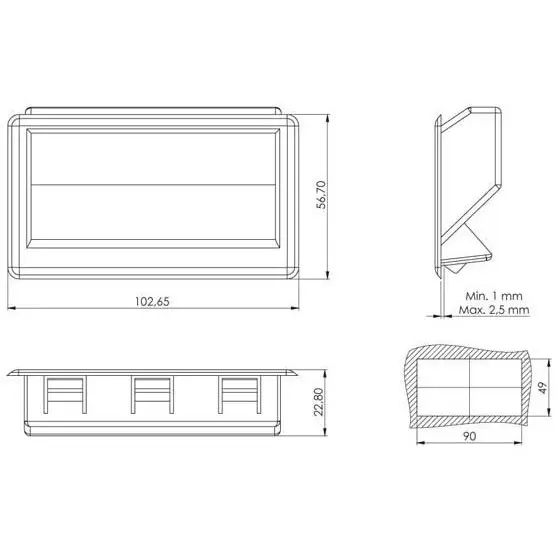

Handle recess, snap-in, polyamide, black, dimensioned drawing in millimetres
Dimensioned drawing, mmOpen full size
In stock, Johannesburg

Handle recess, snap-in, polyamide, black

SKU 105057 Reference 703 Family Accessories and hardware
Prices for approved trade accountsSign in or apply for an account to see prices and buy online. You can still ask for a quotation.
Type
Handles
Material
Polyamide
Finish
Black
Fixing
Snap-in
Availability
In stock, Johannesburg
Sold
Each

Attributes above are read from the catalogue description “HANDLE RECESS SNAP IN POLYAMIDE BLACK 703” and the drawing. Where they differ, the drawing is definitive. Dimensions in millimetres.

Application and selection

Everything that completes an installation: keys for each insert, rods and guides for swing handles, grab and pull handles, ventilation shutters and filters, busbar insulators, document holders, and specialist locks for truck toolboxes, transformers and fire cabinets.

  • Use the Type filter to narrow this group.
  • Keys are matched by insert size and shape, not by lock model.

Used in: Vehicle bodies and service compartments, Machinery access doors.

Documents
What is included

One handle recess, snap-in, polyamide, black as pictured. Rods, cams, keys, gaskets and fixings are separate lines unless the description says otherwise. Ask if you need the bill of materials for a complete door.

TitleHandle recess, snap-in, polyamide, black
SKU105057
Reference703
Series703
Unitsmm · ZAR excl. VAT

All configurations in the 703 series

Same family, same series code. Compare inserts, finishes and versions, then add several lines at once.

ProductConfigurationDrawingPrice excl. VATStockQty
Handle, polyamide, black
107591 · Ref 703-6
Polyamide · Black Sign in for price Enquire
Enter quantities, then add every line at once:
Sign in for price
