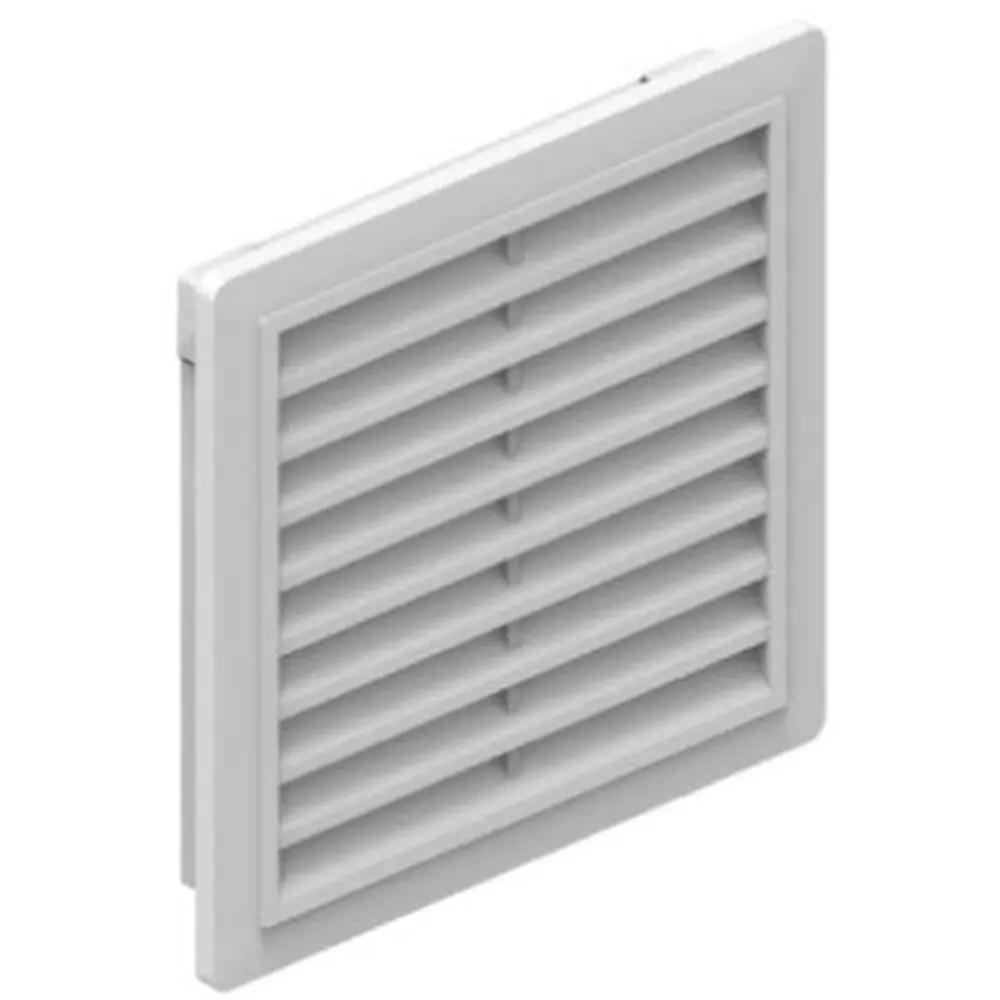

Vent, 105 × 105 mm, grey, plastic, photograph
Photographclick to zoom

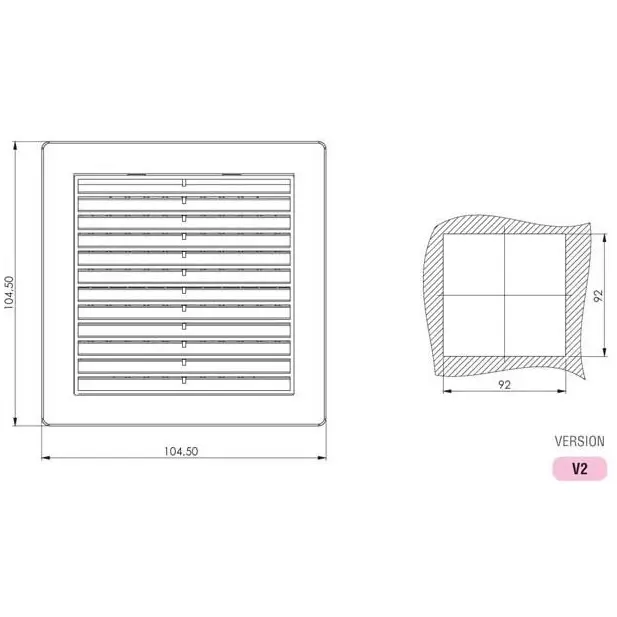

Vent, 105 × 105 mm, grey, plastic, dimensioned drawing in millimetres
Dimensioned drawing, mmOpen full size
In stock, Johannesburg

Vent, 105 × 105 mm, grey, plastic

SKU 105056 Reference 701-V2-5 Family Accessories and hardware
Other configurations in the 701 series. Choosing one changes the code, image, drawing, price and stock together.
Size
Prices for approved trade accountsSign in or apply for an account to see prices and buy online. You can still ask for a quotation.
Type
Vents & filters
Material
Plastic
Finish
Grey
Size
105 × 105 mm
Availability
In stock, Johannesburg
Sold
Each

Attributes above are read from the catalogue description “VENT 105x105mm GREY PLASTIC 701-V2-5” and the drawing. Where they differ, the drawing is definitive. Dimensions in millimetres.

Application and selection

Everything that completes an installation: keys for each insert, rods and guides for swing handles, grab and pull handles, ventilation shutters and filters, busbar insulators, document holders, and specialist locks for truck toolboxes, transformers and fire cabinets.

  • Use the Type filter to narrow this group.
  • Keys are matched by insert size and shape, not by lock model.

Used in: Vehicle bodies and service compartments, Machinery access doors.

Documents
What is included

One vent, 105 × 105 mm, grey, plastic as pictured. Rods, cams, keys, gaskets and fixings are separate lines unless the description says otherwise. Ask if you need the bill of materials for a complete door.

TitleVent, 105 × 105 mm, grey, plastic
SKU105056
Reference701-V2-5
Series701
Unitsmm · ZAR excl. VAT

All configurations in the 701 series

Same family, same series code. Compare inserts, finishes and versions, then add several lines at once.

ProductConfigurationDrawingPrice excl. VATStockQty
Ventilation shutter, 250 × 250 mm, black
105054 · Ref 701-2-6
Black · 250 × 250 mm Sign in for price To order
Vent, 150 × 150 mm, grey, plastic, snap-on type
105055 · Ref 701-V1-5
Plastic · Grey · 150 × 150 mm · Snap-on Sign in for price JHB stock
Ventilation filter, 150 × 150 mm, RAL 7035
107589 · Ref 701-V1-5
RAL 7035 light grey · 150 × 150 mm Sign in for price Enquire
Ventilation filter, 250 × 250 mm, RAL 7035
107590 · Ref 701-2-5
RAL 7035 light grey · 250 × 250 mm Sign in for price Enquire
Enter quantities, then add every line at once:
Sign in for price
