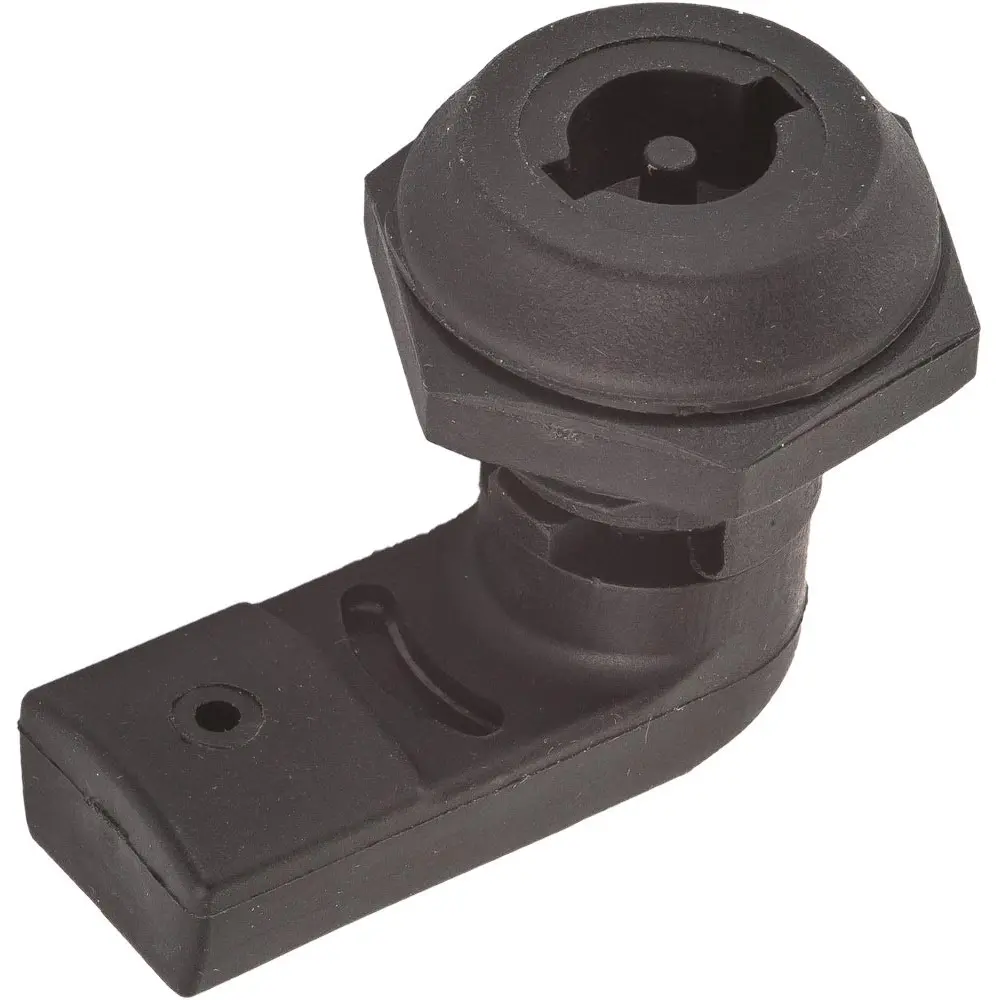

Quarter-turn cam lock, black, polyamide, 270-6 with key, 3 mm double-bit, photograph
Photographclick to zoom

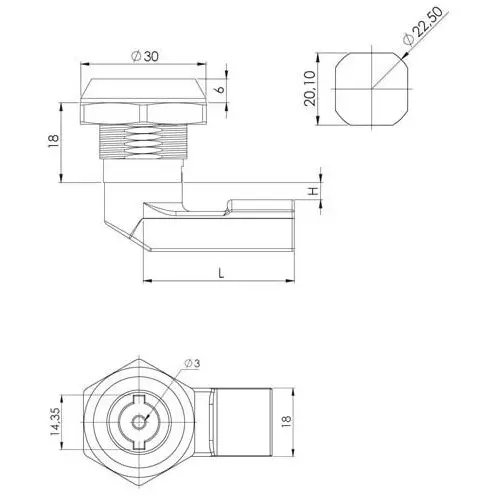

Quarter-turn cam lock, black, polyamide, 270-6 with key, 3 mm double-bit, dimensioned drawing in millimetres
Dimensioned drawing, mmOpen full size
View 1View 2
In stock, Johannesburg

Quarter-turn cam lock, black, polyamide, 270-6 with key, 3 mm double-bit

SKU 105044 Reference 203-3-K1 Family Cam locks and quarter-turns
Prices for approved trade accountsSign in or apply for an account to see prices and buy online. You can still ask for a quotation.
Type
Quarter-turn cam locks
Material
Polyamide
Finish
Black
Insert / key
3 mm double-bit
Availability
In stock, Johannesburg
Sold
Each

Attributes above are read from the catalogue description “CAM LOCK QUARTER TURN BLACK POLYAMIDE 270-6 WITH KEY 3mm DOUB 203-3-K1” and the drawing. Where they differ, the drawing is definitive. Dimensions in millimetres.

Application and selection

Quarter-turn cam locks are the standard closure for enclosure panels: a 90° turn swings a cam behind the frame. The 201 series is offered with the full range of tool inserts (double-bit, square, triangle, Allen), and there are wing-knob, T-handle and L-handle variants for tool-free access.

  • Match the insert to the site key standard: 3 mm and 5 mm double-bit, 6 mm and 8 mm square, 8 mm and 9 mm triangle, 6 mm Allen.
  • Zinc die-cast chrome, zinc black and polyamide bodies.
  • Cams, cam holders, keys and dust caps are in Accessories.

Used in: Electrical enclosures, Vehicle bodies and service compartments, Machinery access doors.

Documents
What is included

One quarter-turn cam lock, black, polyamide, 270-6 with key, 3 mm double-bit as pictured. Rods, cams, keys, gaskets and fixings are separate lines unless the description says otherwise. Ask if you need the bill of materials for a complete door.

TitleQuarter-turn cam lock, black, polyamide, 270-6 with key, 3 mm double-bit
SKU105044
Reference203-3-K1
Series203
