Lock, L handle, keyed alike, chrome
- Type
- L-handle locks
- Finish
- Chrome plated
- Insert / key
- L-handle
- Locking
- Keyed alike
- Availability
- In stock, Johannesburg
- Sold
- Each
Attributes above are read from the catalogue description “LOCK L HANDLE KEYED ALIKE CHROME 247-1-01-07” and the drawing. Where they differ, the drawing is definitive. Dimensions in millimetres.
Application and selection
Quarter-turn cam locks are the standard closure for enclosure panels: a 90° turn swings a cam behind the frame. The 201 series is offered with the full range of tool inserts (double-bit, square, triangle, Allen), and there are wing-knob, T-handle and L-handle variants for tool-free access.
- Match the insert to the site key standard: 3 mm and 5 mm double-bit, 6 mm and 8 mm square, 8 mm and 9 mm triangle, 6 mm Allen.
- Zinc die-cast chrome, zinc black and polyamide bodies.
- Cams, cam holders, keys and dust caps are in Accessories.
Used in: Electrical enclosures, Vehicle bodies and service compartments, Machinery access doors.
Documents

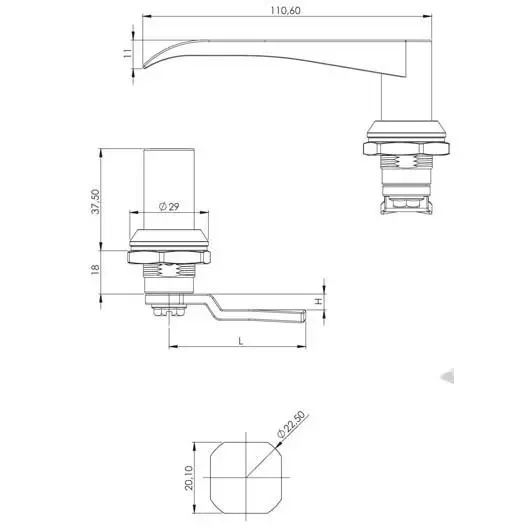

- Dimensioned drawing (image, mm) — 105036 / 247-1-01-07
- PDF datasheet, installation guide and CAD file: not on file for this part. Request them and we obtain them from the manufacturer.
What is included

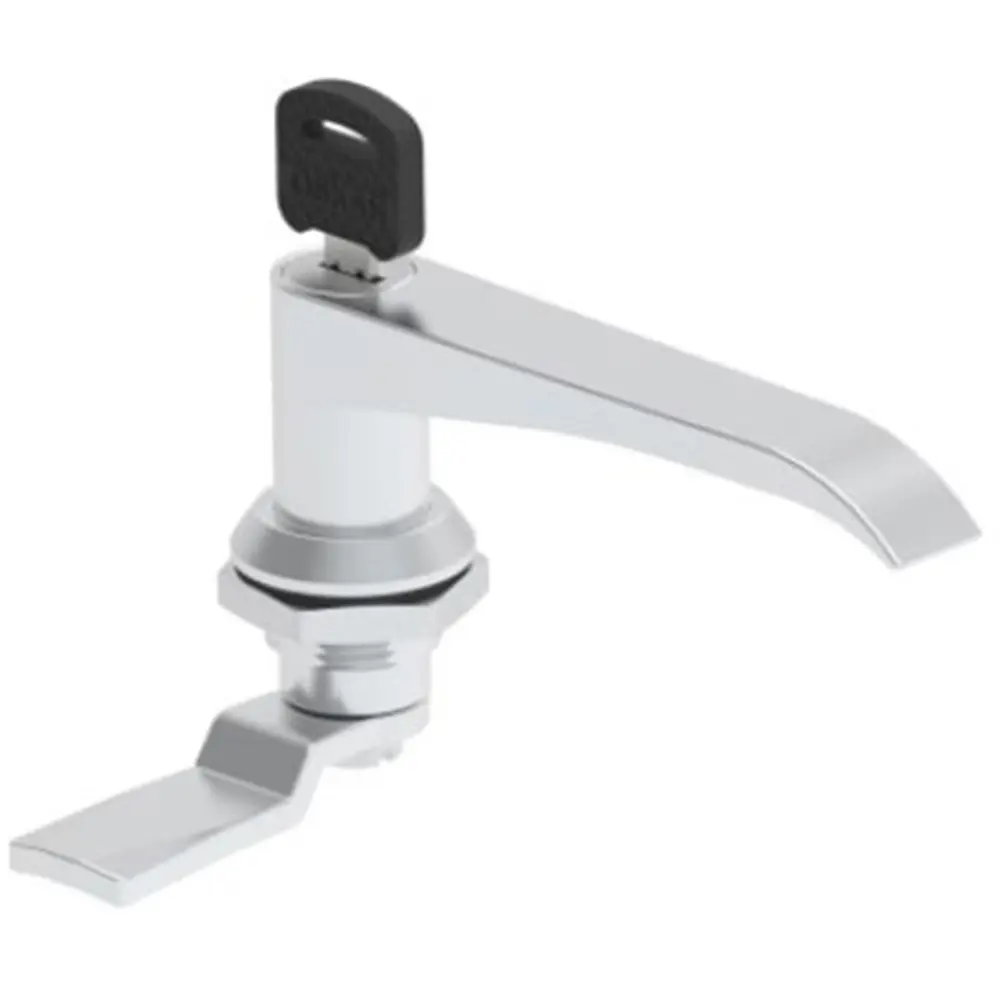

One lock, l handle, keyed alike, chrome as pictured, with key. Rods, cams, keys, gaskets and fixings are separate lines unless the description says otherwise. Ask if you need the bill of materials for a complete door.
