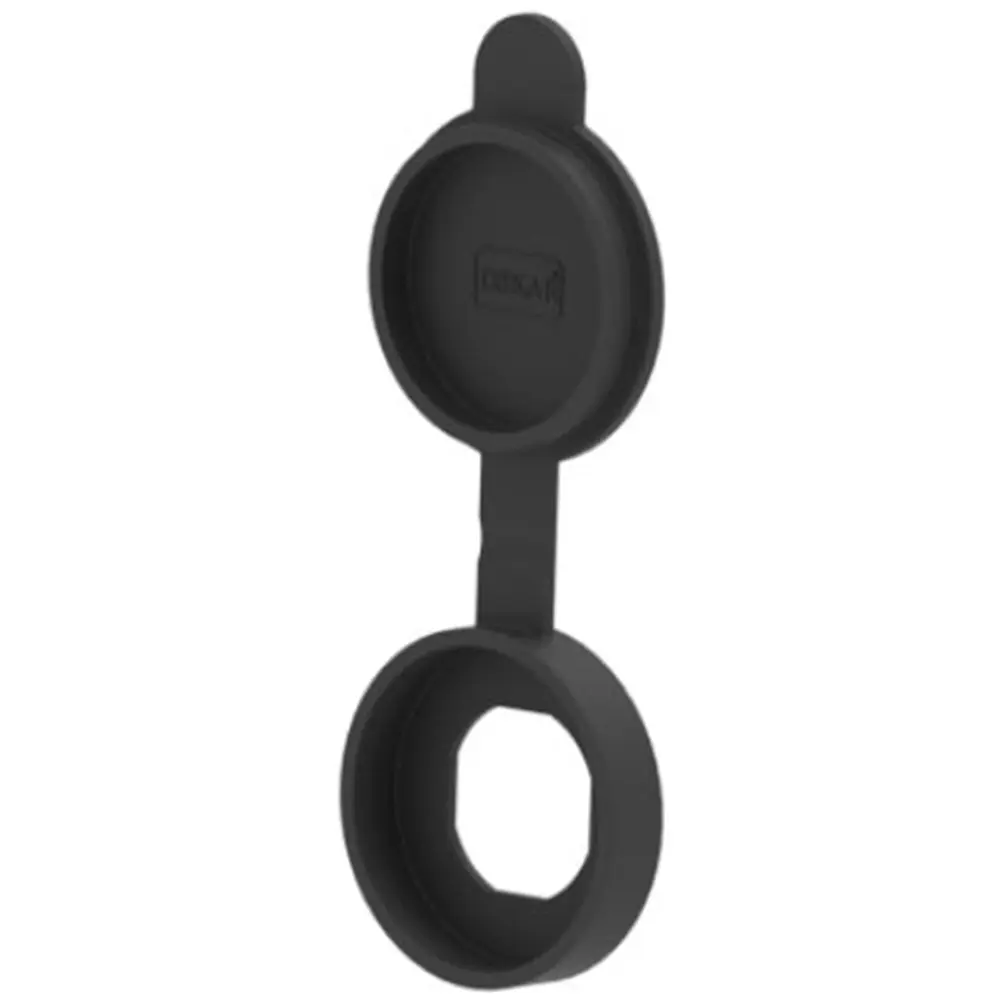

Dust cap for panel lock, elastomer, photograph
Photographclick to zoom

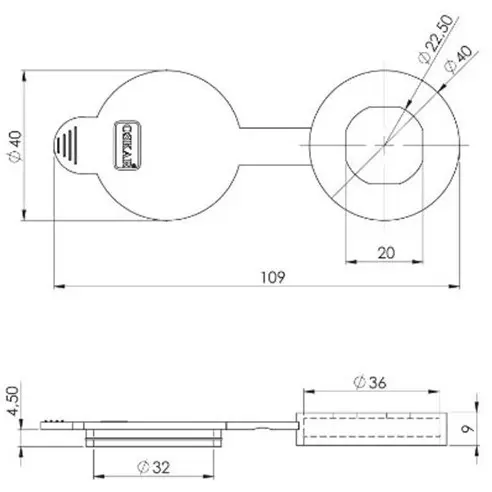

Dust cap for panel lock, elastomer, dimensioned drawing in millimetres
Dimensioned drawing, mmOpen full size
In stock, Johannesburg

Dust cap for panel lock, elastomer

SKU 105030 Reference 217 Family Cam locks and quarter-turns
Prices for approved trade accountsSign in or apply for an account to see prices and buy online. You can still ask for a quotation.
Type
Caps & covers
Material
Elastomer
Availability
In stock, Johannesburg
Sold
Each

Attributes above are read from the catalogue description “DUST CAP FOR PANEL LOCK ELASTOMER 217” and the drawing. Where they differ, the drawing is definitive. Dimensions in millimetres.

Application and selection

Quarter-turn cam locks are the standard closure for enclosure panels: a 90° turn swings a cam behind the frame. The 201 series is offered with the full range of tool inserts (double-bit, square, triangle, Allen), and there are wing-knob, T-handle and L-handle variants for tool-free access.

  • Match the insert to the site key standard: 3 mm and 5 mm double-bit, 6 mm and 8 mm square, 8 mm and 9 mm triangle, 6 mm Allen.
  • Zinc die-cast chrome, zinc black and polyamide bodies.
  • Cams, cam holders, keys and dust caps are in Accessories.

Used in: Electrical enclosures, Vehicle bodies and service compartments, Machinery access doors.

Documents
What is included

One dust cap for panel lock, elastomer as pictured. Rods, cams, keys, gaskets and fixings are separate lines unless the description says otherwise. Ask if you need the bill of materials for a complete door.

TitleDust cap for panel lock, elastomer
SKU105030
Reference217
Series217
Unitsmm · ZAR excl. VAT
