Panel lock, automatic, left, zinc body, steel cam, chrome plated
- Type
- Panel locks
- Material
- Zinc die-cast
- Finish
- Chrome plated
- Feature
- Automatic
- Hand
- Left
- Component
- Steel cam
- Availability
- In stock, Johannesburg
- Sold
- Each
Attributes above are read from the catalogue description “AUTOMATIC PANEL LOCK LEFT ZINC BODY STEEL CAM CHROME PLATED 212L” and the drawing. Where they differ, the drawing is definitive. Dimensions in millimetres.
Application and selection
Everything that completes an installation: keys for each insert, rods and guides for swing handles, grab and pull handles, ventilation shutters and filters, busbar insulators, document holders, and specialist locks for truck toolboxes, transformers and fire cabinets.
- Use the Type filter to narrow this group.
- Keys are matched by insert size and shape, not by lock model.
Used in: Vehicle bodies and service compartments, Machinery access doors.
Documents

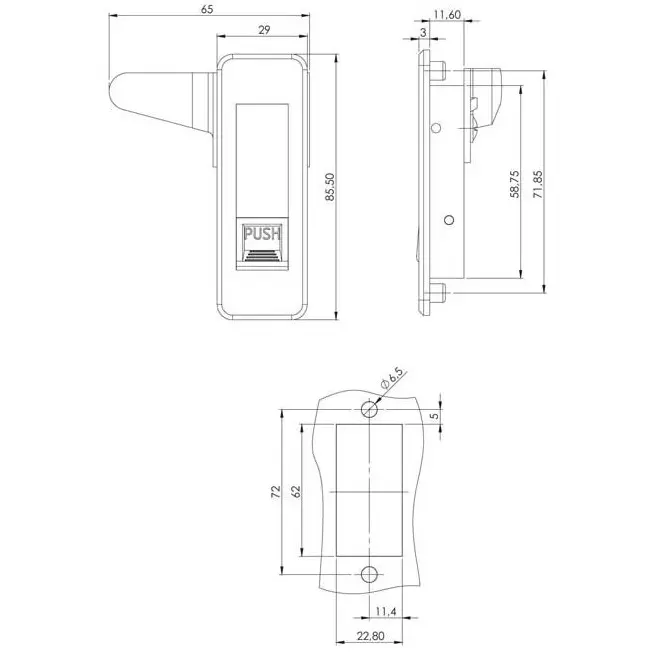

- Dimensioned drawing (image, mm) — 105027 / 212L
- PDF datasheet, installation guide and CAD file: not on file for this part. Request them and we obtain them from the manufacturer.
What is included

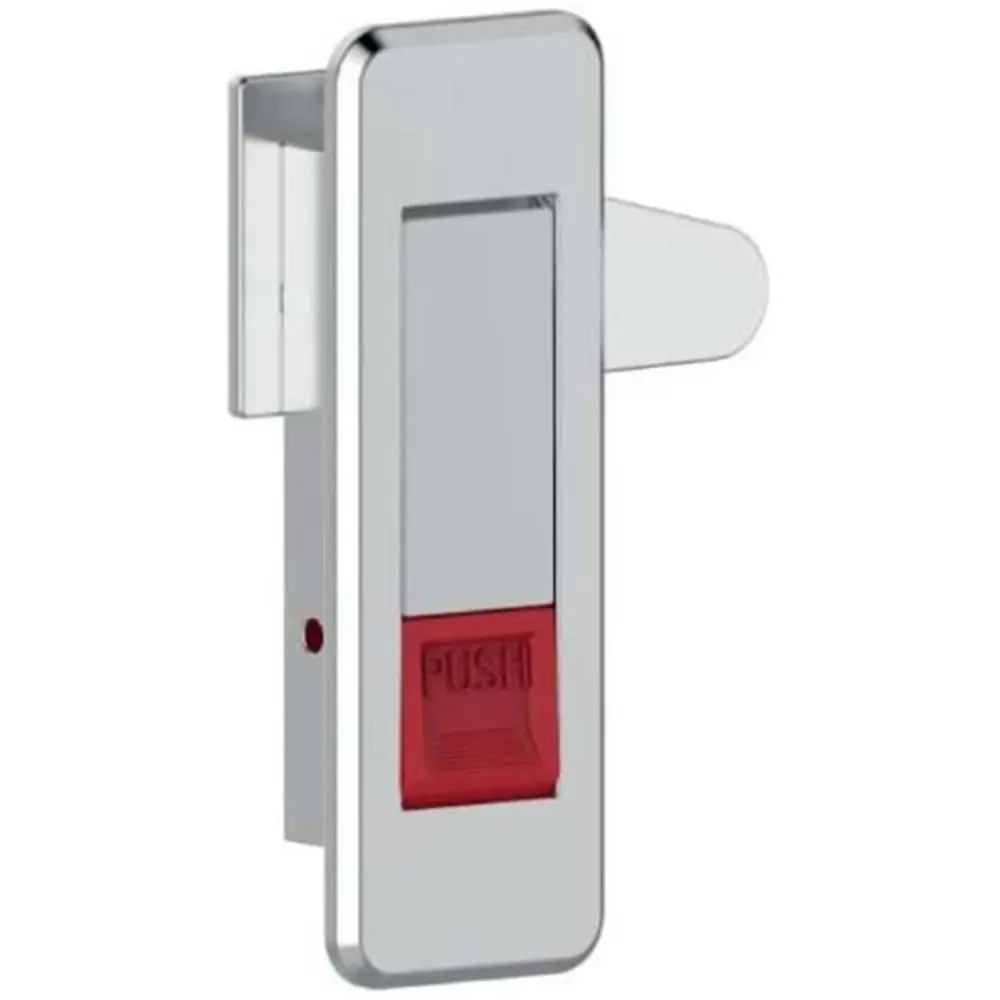

One panel lock, automatic, left, zinc body, steel cam, chrome plated as pictured. Rods, cams, keys, gaskets and fixings are separate lines unless the description says otherwise. Ask if you need the bill of materials for a complete door.
