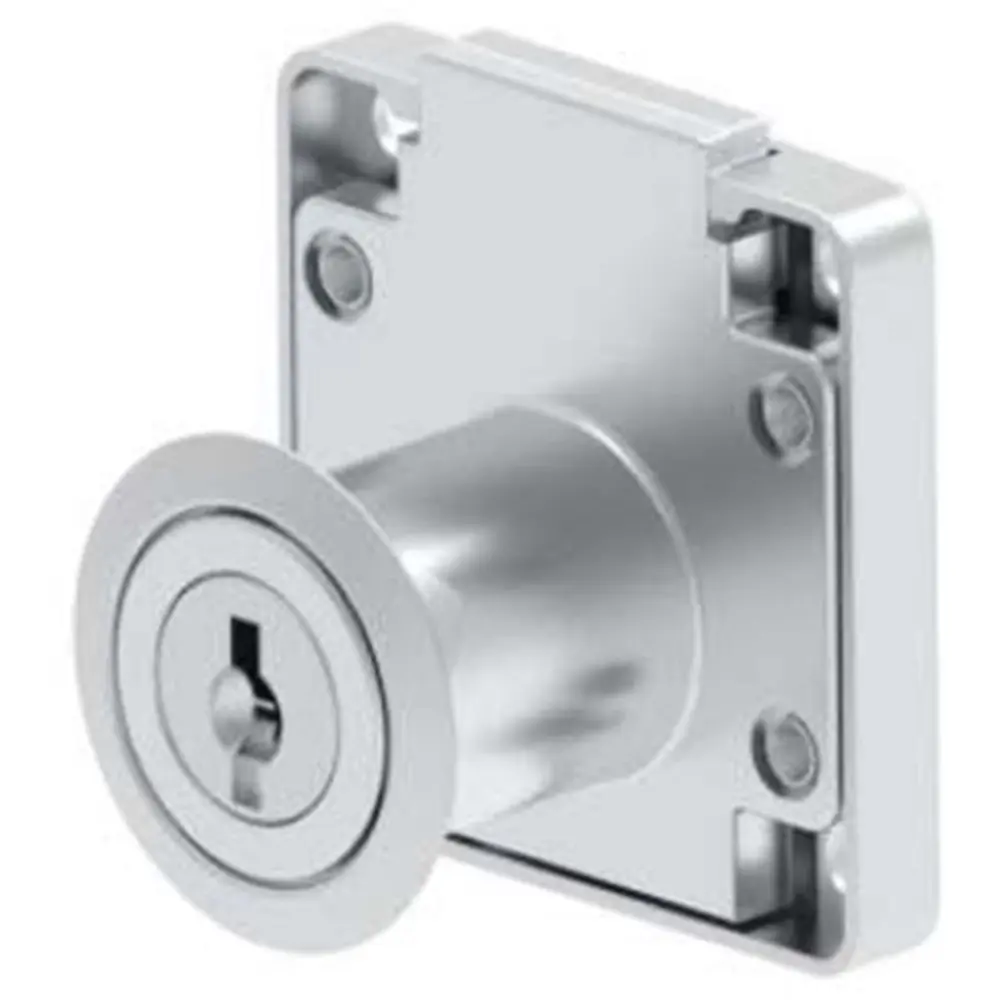

Drawer lock, photograph
Photographclick to zoom

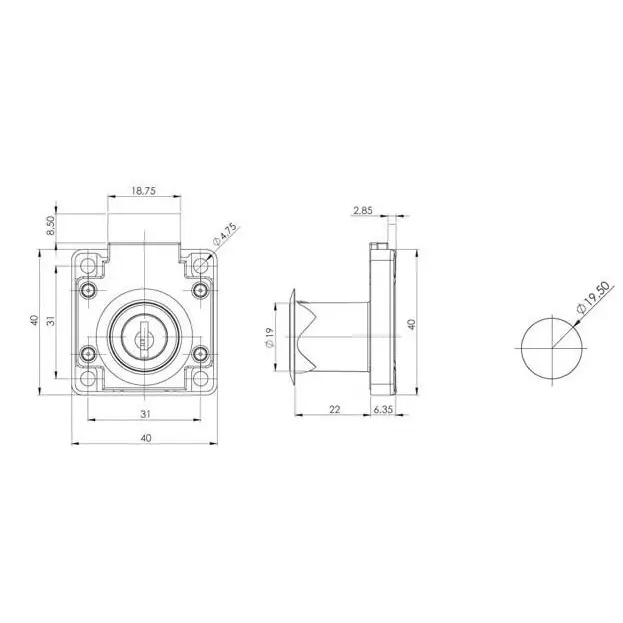

Drawer lock, dimensioned drawing in millimetres
Dimensioned drawing, mmOpen full size
In stock, Johannesburg

Drawer lock

SKU 105014 Reference 130 Family Cam locks and quarter-turns
Prices for approved trade accountsSign in or apply for an account to see prices and buy online. You can still ask for a quotation.
Type
Drawer locks
Availability
In stock, Johannesburg
Sold
Each

Attributes above are read from the catalogue description “DRAWER LOCK 130” and the drawing. Where they differ, the drawing is definitive. Dimensions in millimetres.

Application and selection

Quarter-turn cam locks are the standard closure for enclosure panels: a 90° turn swings a cam behind the frame. The 201 series is offered with the full range of tool inserts (double-bit, square, triangle, Allen), and there are wing-knob, T-handle and L-handle variants for tool-free access.

  • Match the insert to the site key standard: 3 mm and 5 mm double-bit, 6 mm and 8 mm square, 8 mm and 9 mm triangle, 6 mm Allen.
  • Zinc die-cast chrome, zinc black and polyamide bodies.
  • Cams, cam holders, keys and dust caps are in Accessories.

Used in: Electrical enclosures, Vehicle bodies and service compartments, Machinery access doors.

Documents
What is included

One drawer lock as pictured. Rods, cams, keys, gaskets and fixings are separate lines unless the description says otherwise. Ask if you need the bill of materials for a complete door.

TitleDrawer lock
SKU105014
Reference130
Series130
Unitsmm · ZAR excl. VAT
Sign in for price
